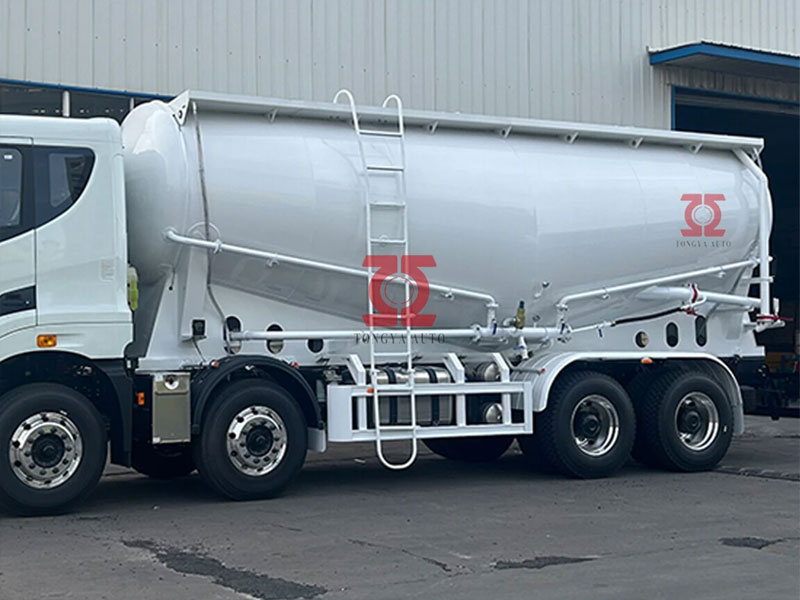

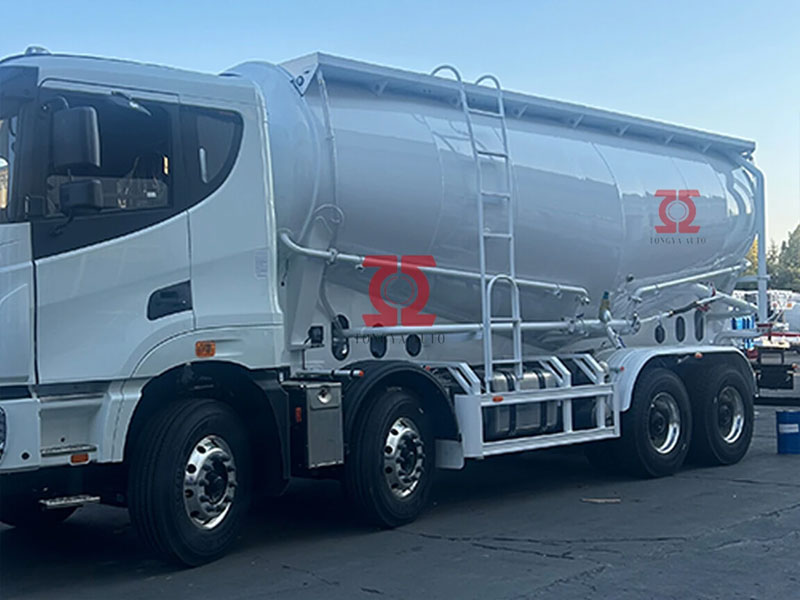

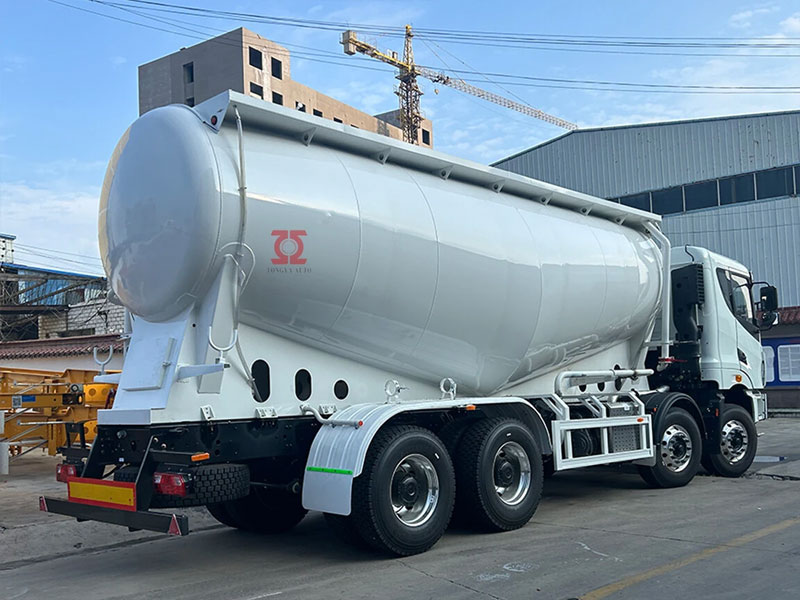

Bulk Cement Tanker Truck
- Tongya Auto manufactures bulk cement tank trucks with advanced pneumatic conveying systems. Features <3% residual rate, 30m³-60m³ capa……
Product Description
Tongya Auto manufactures bulk cement tank trucks with advanced pneumatic conveying systems. Features <3% residual rate, 30m³-60m³ capacity, and anti-corrosion coating. Get a quote today!
1, Advanced technology, equipment and production line,
2, Quality guarantee, best cost performance,
3, Fast and completely discharge, Less residual,
4, We are manufacturer, provide customized service, design as your requirements.
| Specifications | |
| Usage | Transport fly ash powder,dry bulk cement |
| Shipping terms | Bulk cargo carrier or RO-RO |
| Delivery time | 20 workdays |
| Payload | About 30T |
| Outside dimensions(L*W*H) | 10300MM*2500MM*3600MM |
| Chassis | |
| Chassis model | Shacman,8*4 |
| Cab | with air conditioning and other |
| Engine | WEICHAI Euro Ⅱ emission,300hp |
| Gear box | FAST transmission 9 |
| Axles | Front axles:MAN 7.5T×2Rear axles:MAN 13T×2 |
| Tire/Rim | Tire:12.00R20 Rim:8.5*20 |
| Suspension | Leaf spring suspension |
| Fuel tank | 300L aluminum |
| Frame(mm) | 850✖300（8+5） |
| Wheelbase(mm) | 1950+3950+1400 |
| Tanker body | |
| Thickness | High strength steelThe tanker body made of 4 mm, front and rear dish made of 5 mm thickness steel |
| Tanker body volume | 28CBM |
| Design/welding technology | Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. |
| Bottom chassis | High strength Q345B steel |
| Tanker shape | “V” shape |
| Manhole: | 2 pieces, (Diameter is 500mm) |
| Discharge mouth | 4 inch Discharge mouth |
| Safety valve | Double safety pressure valves, extra safety guaranteed |
| Discharge hose | 8m with Hose carries |
| Rear ladder and handrail | Heavy duty ladder, located at rear Standard |
| Discharging time | 30 minutes |
| Retention volume | <0.3% |
Please contact us for specific detailed parameters, we will give you the best price. We have our own factory, welcome to visit us.
