Tongya Skeleton Semi Trailer
- Tongya Skeletal Trailers: Custom-Engineered for Optimal Container Transport Tongya's advanced skeletal trailers offer versatile c……
Product Description
Tongya Skeletal Trailers: Custom-Engineered for Optimal Container Transport
Tongya's advanced skeletal trailers offer versatile container compatibility, designed to accommodate 20', 30', 40', 45' containers as well as dual 20' configurations or any custom combination. Our engineering focuses on weight optimization, reducing unladen weight while maintaining structural integrity for enhanced payload efficiency. Each trailer can be custom-configured to match your specific operational requirements and transport needs.
Available in both straight beam and gooseneck designs, Tongya skeletal trailers serve as the backbone of modern intermodal logistics. They're engineered to perform flawlessly across maritime ports, highway systems, rail terminals, and multimodal transit hubs, ensuring seamless connectivity throughout the supply chain. The robust construction withstands the rigors of continuous heavy-duty operation in diverse transport environments.
For specialized applications, Tongya provides tailored gooseneck skeletal trailer solutions. Our engineering team can design and manufacture custom configurations to meet unique operational challenges, including specialized clearances, weight distributions, or route-specific requirements. This flexibility ensures optimal performance whether you're navigating port facilities, mountainous terrain, or complex urban logistics networks.
| Specification | |
| Tare Weight | About 6.5tons |
| Outer side dimension (mm) | 12450*2490*1400 |
| Loading Capacity(Ton) | ≦45T(40FT) |
| Axles | 13T/PER, Tongya or FUWA or BPW brand |

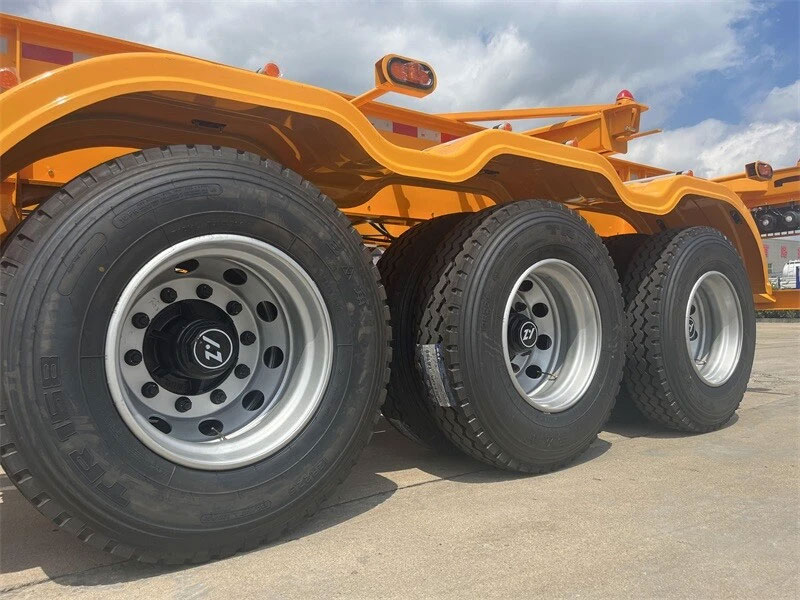

| Tire | 12.00R22.5 or 315/80R22.5 Triangle brand |
| Rim | 9.00-22.5 China Brand |
| Suspension | Mechanical suspension |
| Spring leaf | 90(W)mm*13(Thickness)mm 10 pcs leaf spring |

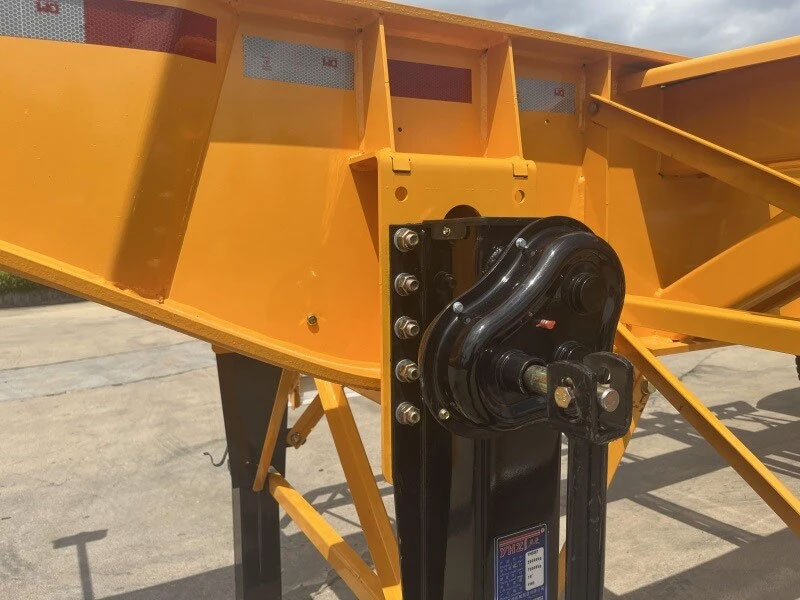

| King pin | JOST brand 2.0 or 3.5 |

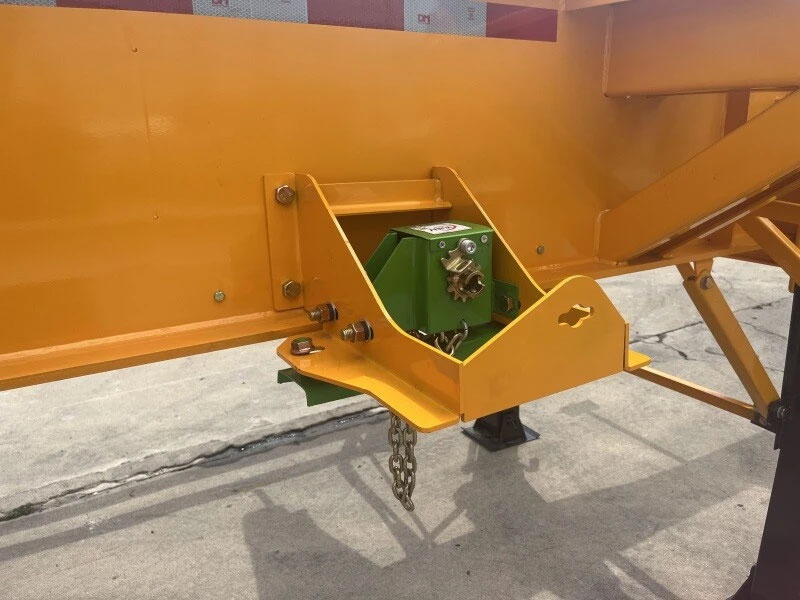

| Landing legs | JOST brand A300C |
| Main Beam | Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel. |
| Brake chamber | WABCO relay valve |
| Twist Locks | 12 units ISO twist locks |
| ABS | Optional |
| Light | LED light |
| Voltage | 24V |
| Electrical | One unit of 27V 7-pin ISO 1185 socket |
| Tool box | One piece, 1m*0.5m*0.5m (Size can be choose freely) |
| Painting | Sand blasting before painting;one casts of primer,anti-corrosion;two coats of finish painting;color advised by client. |
Skeleton semi trailer Advantages:
1. Light weight, can increase the cargo loading capacity, improve the efficiency of transportation;
2. High space utilization rate, open skeleton structure, can be adapted to different sizes and specifications of the container, can make full use
of space, to achieve efficient transportation;
3. High loading and unloading efficiency, which can greatly shorten the loading and unloading time of goods and improve the logistics efficiency.
