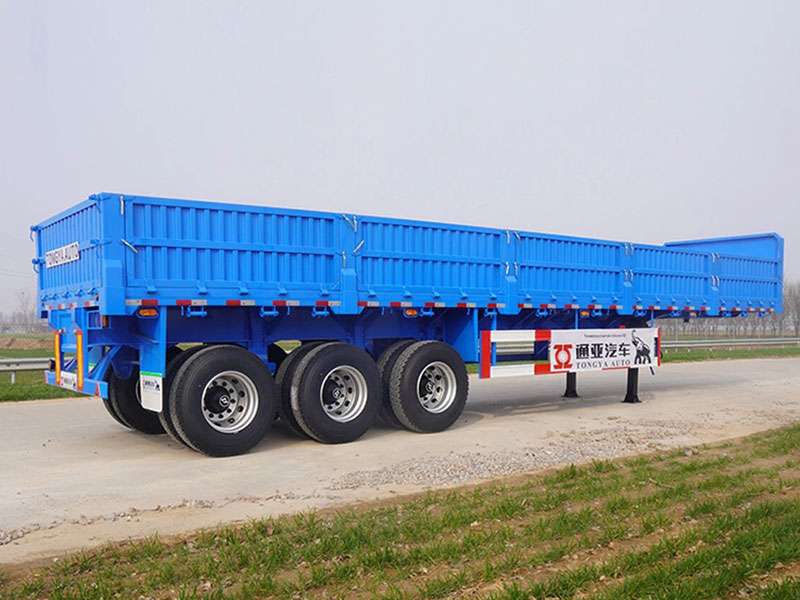

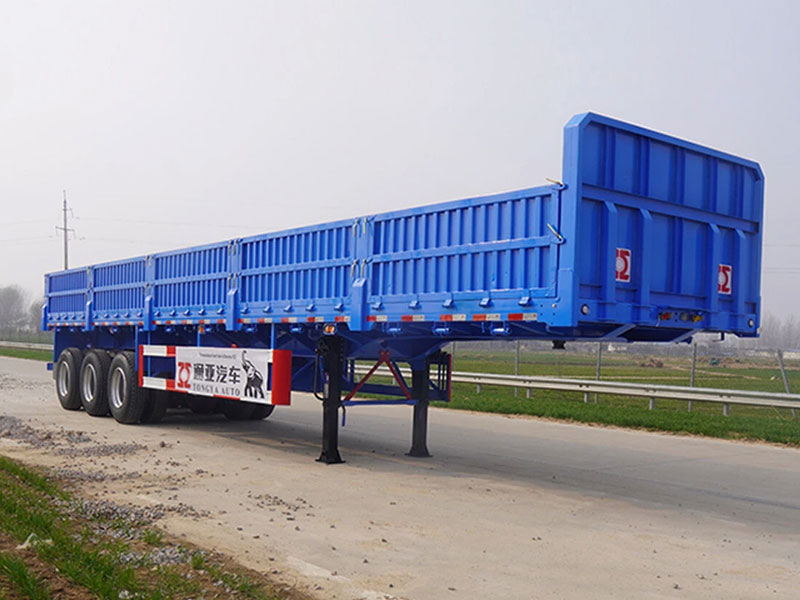

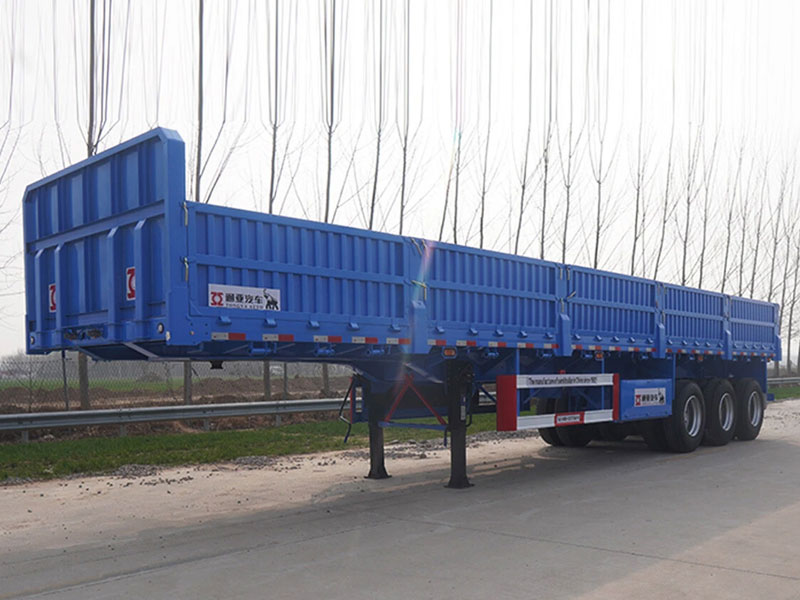

Tongya Side Wall Semi Trailer
- Premium-Quality Transport Solution - Our side wall semi trailers deliver exceptional load capacity while maintaining superior build……
Product Description
- Premium-Quality Transport Solution - Our side wall semi trailers deliver exceptional load capacity while maintaining superior build quality for maximum cargo efficiency.
- High-Strength Steel Construction - Built with durable Q345 steel framework that ensures structural integrity and reliable cargo stability during transit.
- Top-Tier Component Selection - Equipped with FUWA brand axles and JOST outriggers, featuring internationally recognized heavy-duty components for lasting performance.
- Engineered for Excellence - Combines functional design with aesthetic appeal, showcasing precision engineering and flawless paint finishing for professional-grade presentation.
| Specification | |
| Outer side dimension(mm) | 12500 × 2500 × 1000 |
| Loading Capacity (Ton) | ≤ 50T |
| AXLES | 13 T 3axles FUWA Brand, |
| Tire | 12R22.5, 13pieces Triangle |
| Rim | 9.00-22.5, 13pieces China Brand |
| Suspension | Mechanical suspension (America Type) |
| Spring leaf | 90(W)mm*13(Thickness)mm *10pices, |
| King pin | JOST brand 2.0 or 3.5 inch bolts type |
| Support leg | JOST brand |
| Main Beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm,down plate is 16mm ; Material is Q345B Steel . |
| Plateform | 3mm diamond plate steel |
| Side beam | 16# channel steel |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank |
| Valve | WABCO valve |
| ABS | Without |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of Anticorrosion prime, 2 coats of final paint |
| Twist Lock | 12 piece and transportation container(customized) |
