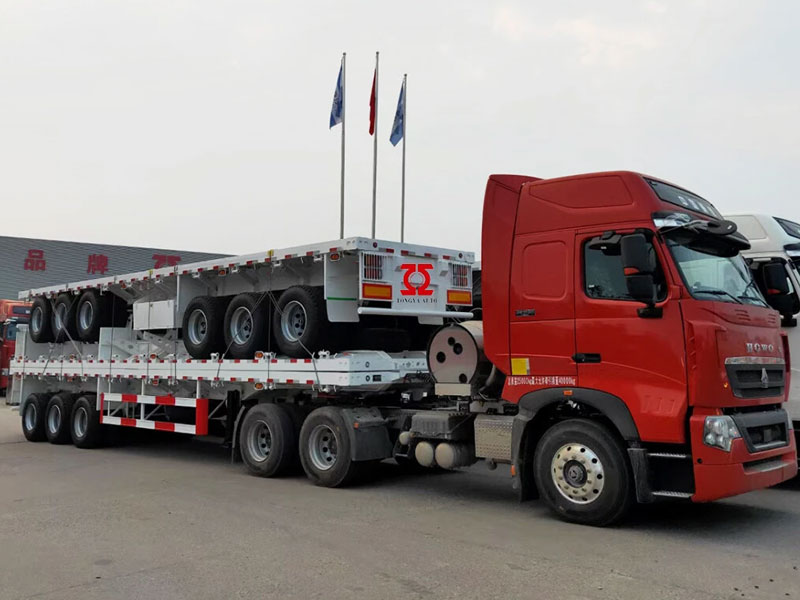

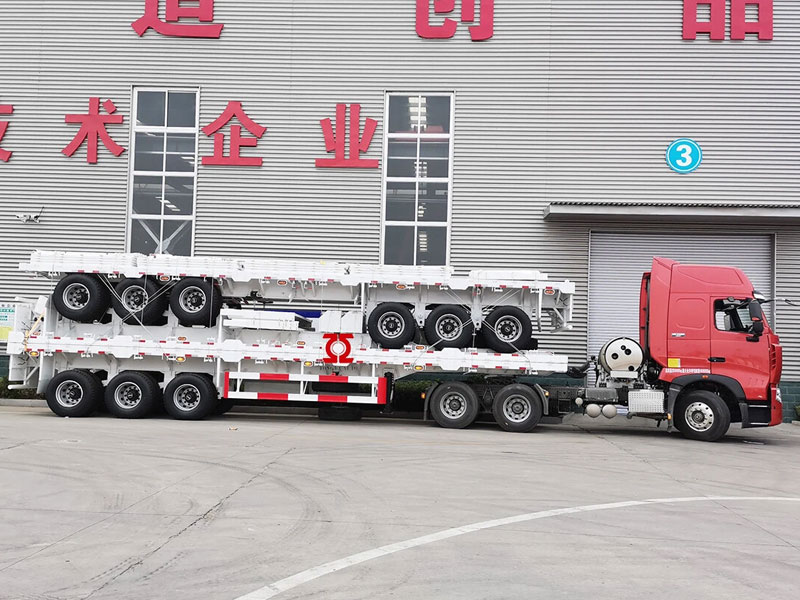

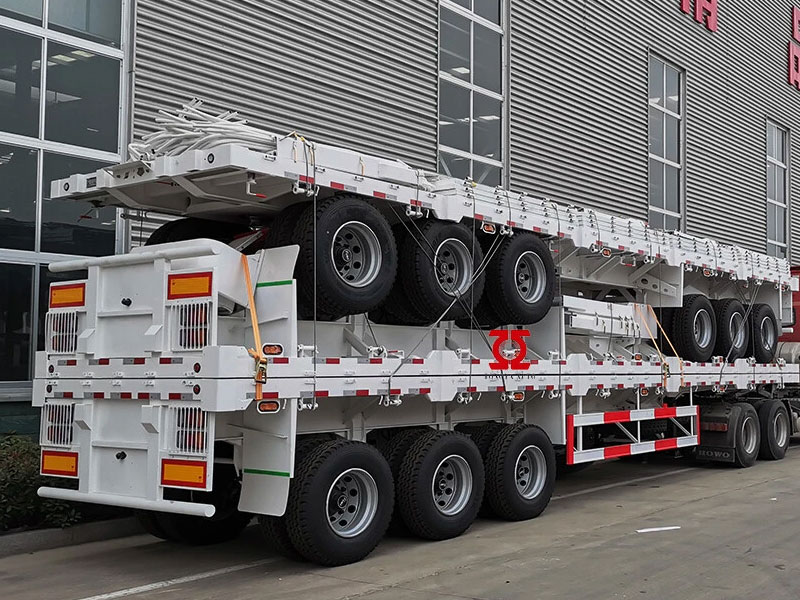

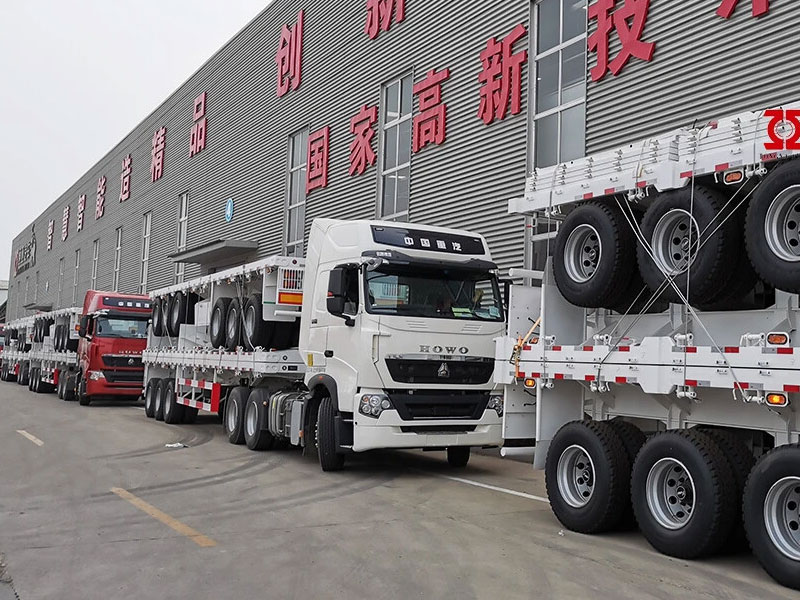

50T Side Wall Semi Trailer with Twist Lock
- Dual-Purpose Transport Solution - Designed for both container hauling and bulk cargo transport (with optional side walls), deliveri……
Product Description
- Dual-Purpose Transport Solution - Designed for both container hauling and bulk cargo transport (with optional side walls), delivering exceptional versatility and cost-efficient operation.
- High-Performance Load Capacity - Engineered to handle maximum payloads of 50,000kg, making it ideal for large-scale industrial and commercial freight requirements.
- Tailored Manufacturing Options - As a direct factory, we offer complete customization including color schemes, tire specifications, axle configurations, and dimensional adjustments to meet your exact needs.
| Specification | |
| Outside Dimension | 12500mm*2550mm*2100mm(the final dimension is according the final drawing picture) |
| Loading capacity | 50tons |
| Axle | 3 Axles Tongyada brand 13tons per axles |
| Suspension | Mechanical suspension |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm,down plate is 16mm ; Q345 steel |
| Twist lock | 12pcs |
| Side wall | Material:Q235 steel;Thickness:1.2mm Height: 600mm-800mm(optional) |
| Bottom platform | Thickness:3mm, patterned platform |
| Tire | 12R22.5 12pcs, brand can be optional |
| Rim | 9.0*22.5 12pcs, brand can be optional |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Landing gear | JOST A300C Or standard 28T |
| Pneumatic Braking System | WABCO RE 6 relay valve, Spring brake chamber; one piece of 45L air tanks |
| Accessories | One standard tool box; one spare wheel carrier; |
| Painting | Spray powder |
| Voltage | 24V |
| Receptacle | 7 ways |
