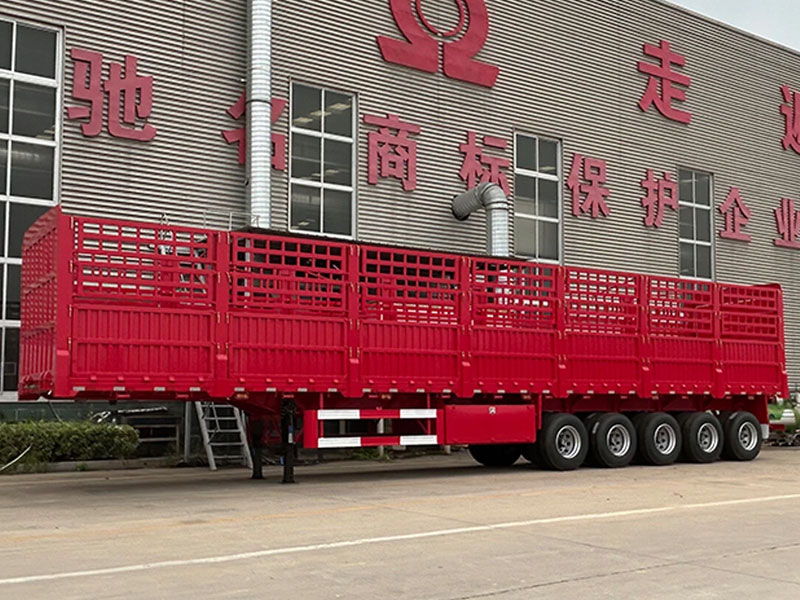

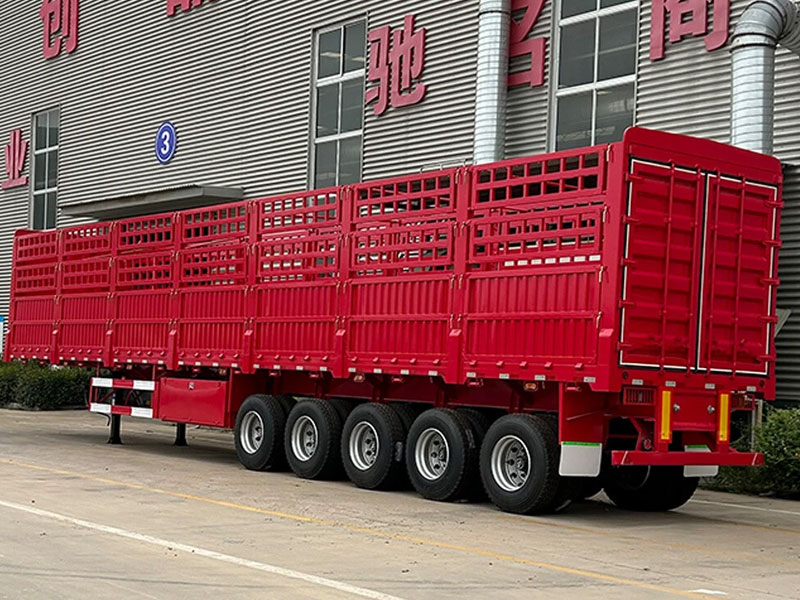

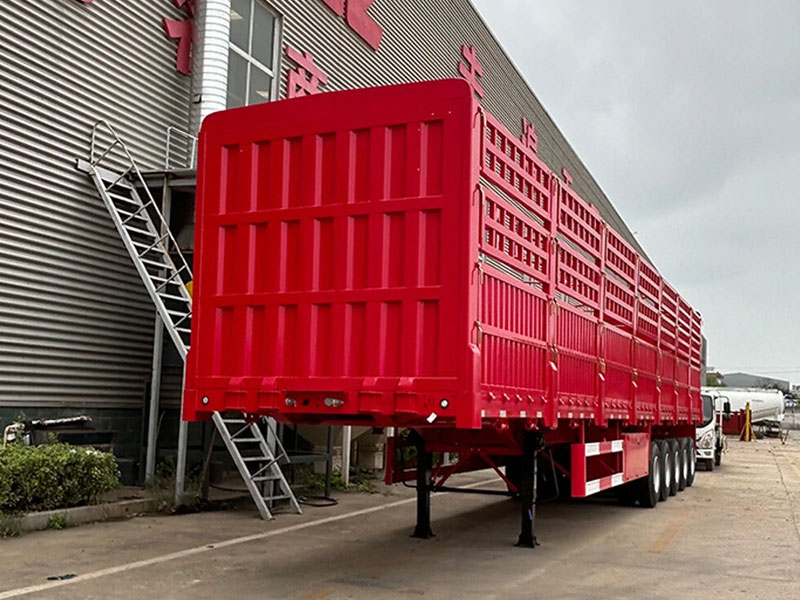

5 Axle Side Wall Semi Trailer for Bulk Cargo
- Long-Haul Bulk Cargo Specialist - Our 5-axle side wall semi trailers are engineered for efficient long-distance transportation of b……
Product Description
- Long-Haul Bulk Cargo Specialist - Our 5-axle side wall semi trailers are engineered for efficient long-distance transportation of bulk materials, featuring an optimized design that ensures stability and safety during extended journeys. The robust side wall construction provides secure containment for various loose cargo types throughout transit.
- High-Capacity Heavy Load Solution - Designed to handle demanding industrial applications, these trailers support substantial payloads ranging from 60 to 80+ tons, making them perfect for transporting heavy construction materials, oversized equipment, and palletized goods. The reinforced structure maintains integrity even under maximum load conditions.



Specification | |
Outside Dimension | 16000*2500*4200mm(the final dimension is according the final drawing picture) |
Loading capacity | 80tons |
Axle | 5 Axles |
Suspension | Mechanical suspension |
Main beam | Height: 500mm, upper plate is 16mm, middle plate is 10mm,down plate is 18mm ; Q345 steel |
Side beam | 18# channel steel |
Side Wall Fence | Side wall height: 2000mmSide fence height: 700mmTotal height: 2700mmThickness: 1.2mm |
Bottom platform | 3mm patterned platform |
Tire | 12R22.5 16pcs |
Rim | 9.0*22.5 16pcs |
Speing leaf | 90(W)mm*13(Thickness)mm*10 Layer |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Landing gear | JOST A300C Or TONGYA 28T |
Pneumatic Braking System | WABCO RE 6 relay valve, Spring brake chamber; one piece of 45L air tanks |
Accessories | One standard tool box; one spare wheel carrier; 24 weld on winchRope hook |
Painting | Spray powder |
Voltage | 24V |
Receptacle | 7 ways |
Please contact us for specific detailed parameters, we will give you the best price.
We have our own factory, welcome to visit us.
