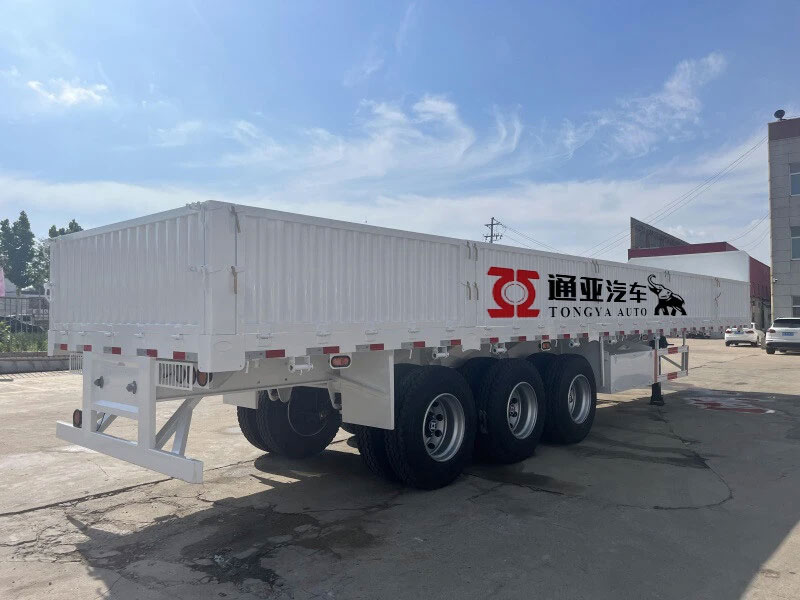

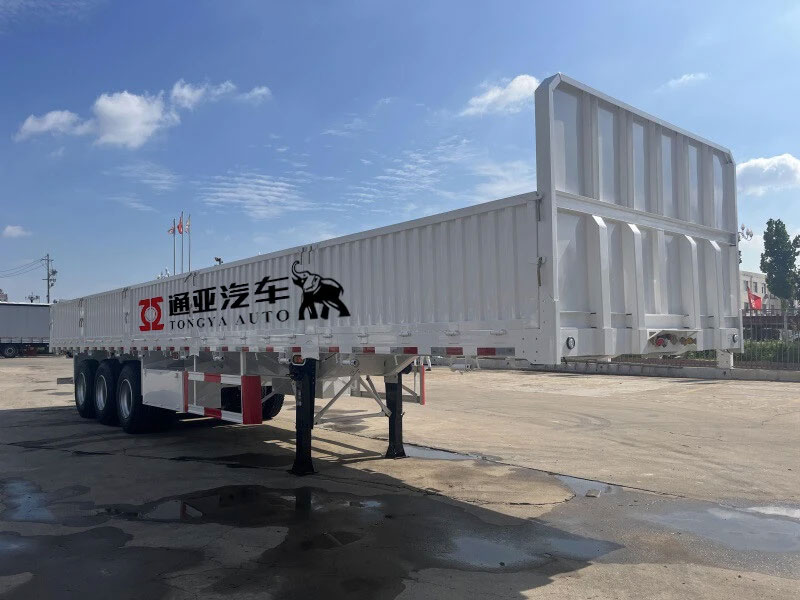

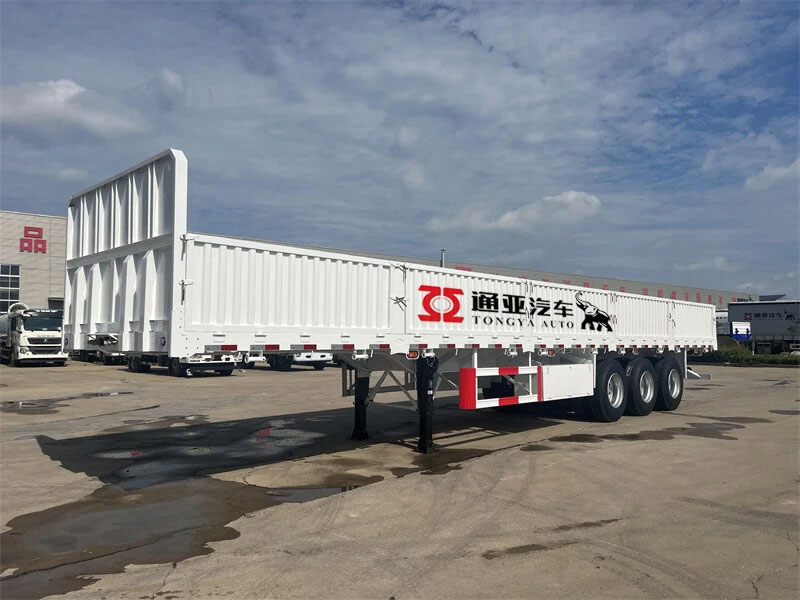

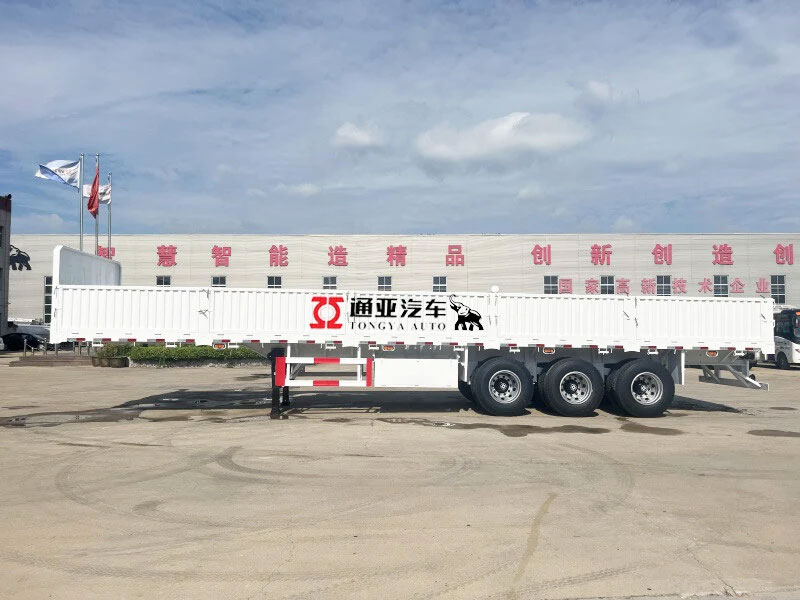

3 Axles Side Wall Semi Trailer
- Tongya Auto's 3 axles side wall semi trailers feature reinforced steel mesh panels & gooseneck/fixed neck options. Ideal for bulk goo……
Product Description
Tongya Auto's 3 axles side wall semi trailers feature reinforced steel mesh panels & gooseneck/fixed neck options. Ideal for bulk goods transport with 6-10ft adjustable wall height. Get specs!
| Specification | |
| Outer side dimension(mm) | 13000 × 2500 × 2850 |
| Loading Capacity (Ton) | ≤ 50T |
| AXLES | 13 T 3axles FUWA Brand, |
| Tire | 12.00R22.5, 13pieces Triangle |
| Rim | 9.00-22.5, 13pieces China Brand |
| Suspension | Mechanical suspension (America Type) |
| Spring leaf | 90(W)mm*13(Thickness)mm *10pices, |
| King pin | JOST brand 2.0 or 3.5 inch bolts type |
| Support leg | JOST brand |
| Main Beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm,down plate is 16mm ; Material is Q345B Steel . |
| Plateform | 3mm diamond plate steel |
| Side beam | 16# channel steel |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank |
| Valve | WABCO valve |
| ABS | Without |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of Anticorrosion prime, 2 coats of final paint |
| Twist Lock | 12 piece and transportation container(customized) |
We have our own factory, which greatly shortens the delivery time, and can ensure that the products are delivered to you in time, so that you can enjoy the best quality products in the shortest time. Welcome to visit our factory, we can pick you up at the airport or high speed train station.
