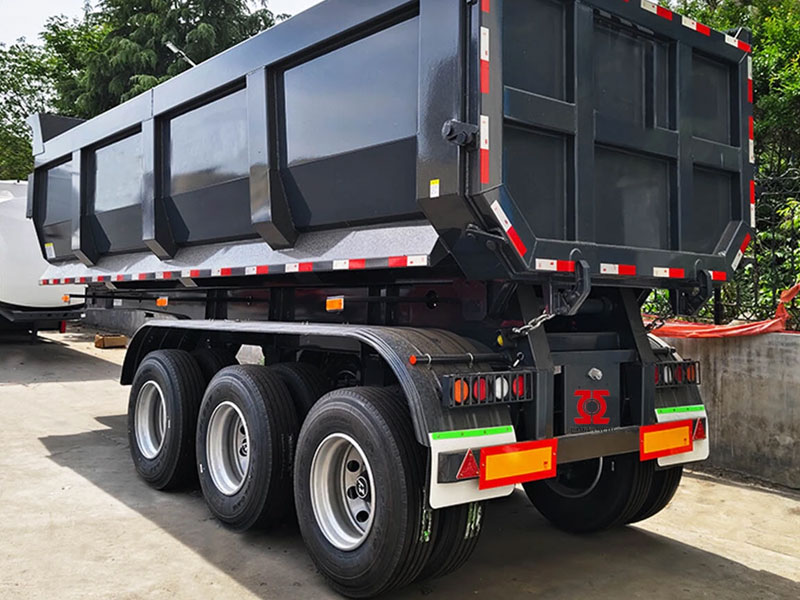

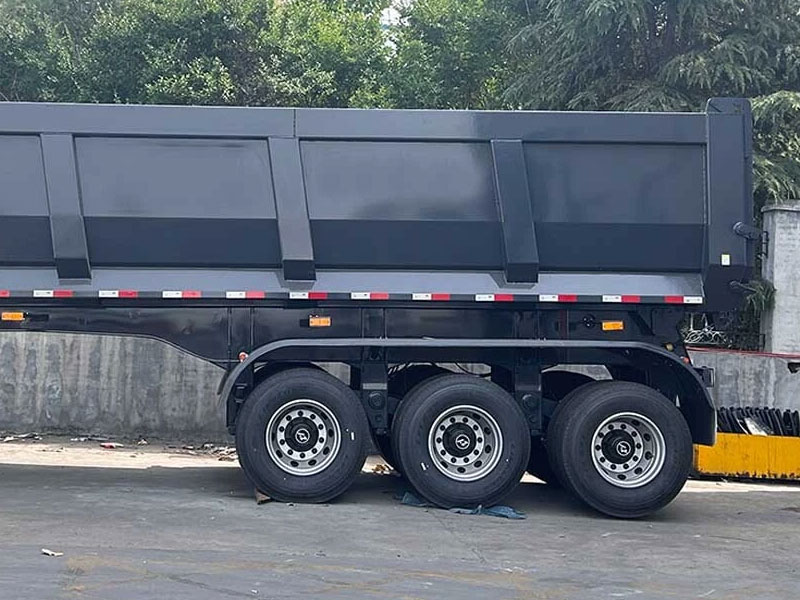

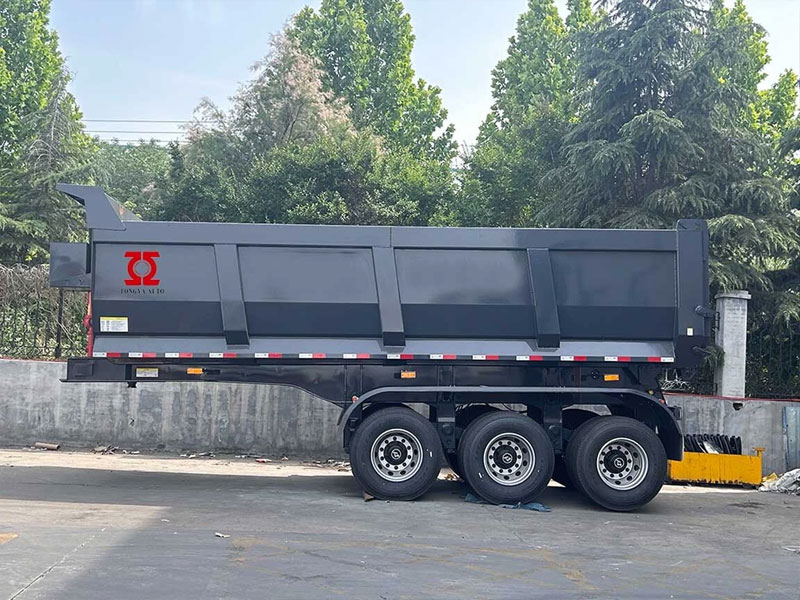

Tongya 40T Dump Semi Trailer
- The adoption of premium high-tensile steel in the trailer construction significantly reduces tare weight while maximizing legal payload ……
Product Description
- The adoption of premium high-tensile steel in the trailer construction significantly reduces tare weight while maximizing legal payload capacity.
- The innovative U-shaped body design ensures smooth material flow during both loading and dumping operations, minimizing residue.
- Customizable configurations are available to accommodate diverse material specifications, delivering a versatile and efficient hauling solution.
Specifications:
| Semi trailer Dimension | 7700*2500*1500mm(customized) |
| Tare Weight | About 10000kg |
| Total Volume | 37m3 or less than 40tons |
| Side wall thicknes(mm) | 6mm Q235 steel |
| Bottom plate thickness(mm) | 8mm Q235steel |

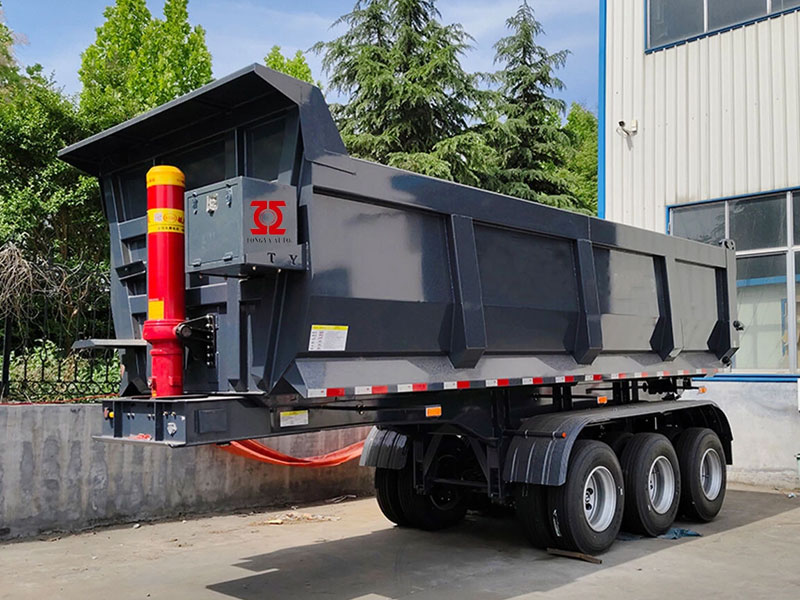

| Lifting system | Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder |
| Chassis | |
| Main beam | Height:500mm,upon plate is 16mm,middle plate is 8mm(2-in-1 or 3-in-1 plate),down plate is 18mm;Material is Q345B Steel |
| Axle | 13T/16T,FUWA/BPW Brand |
| Spring leaf | 90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12 |
| King pin | Jost brand 2.0 0r 3.5 inch bolts type or welding type |
| Landing Gear | without or choose JOST brand A300C or China brand 28Tons (Double speed) or optical |
| Suspension | Mechanical suspension/America Type/Germany Type |
| Rim | 9.00-22.5/8.00-20/8.5-20China Brand |
| Tire | 12R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available |
| Pneumatic Braking system | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber,45L air tank |
| ABS | Optional |
| Tool box | One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint |
| Shipping term | Transport by bulk cargo carrier or RORO The trailer size can be designed according to your special requirements.You can choose a 6*4 model truck for use with your rea dump semi trailer |
