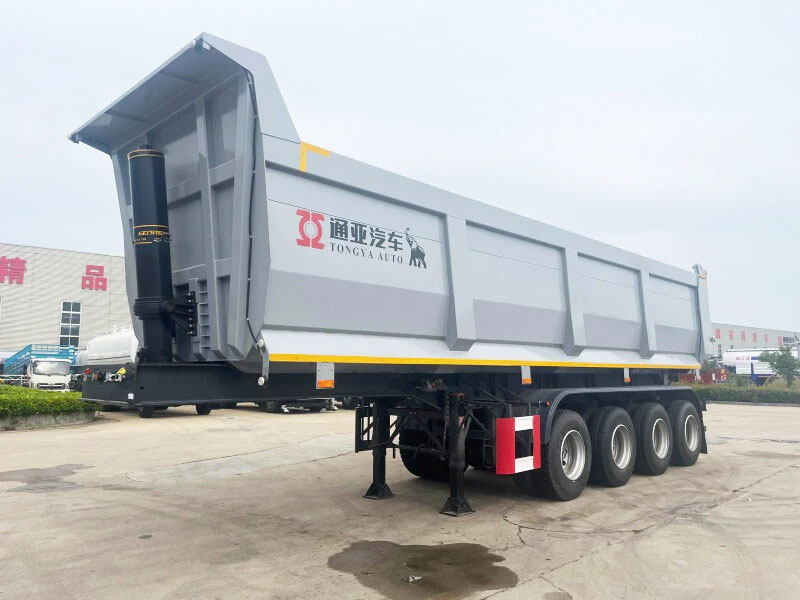

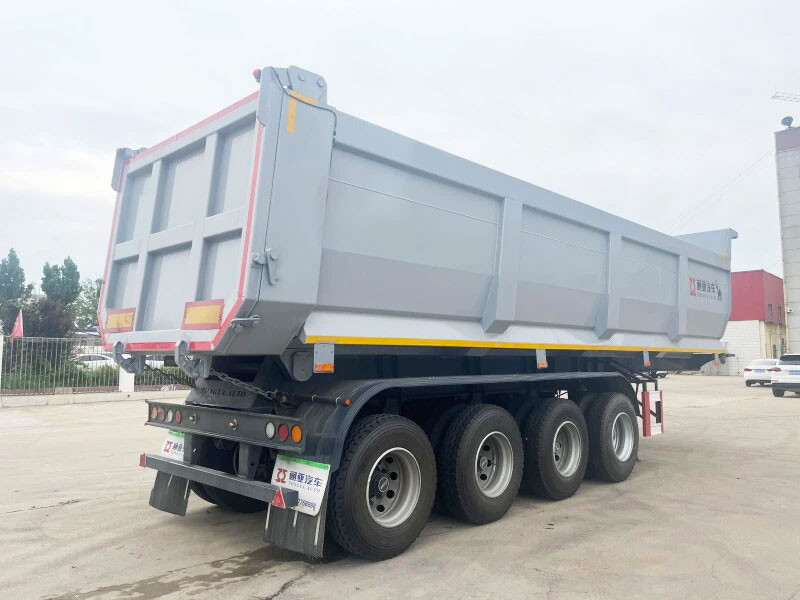

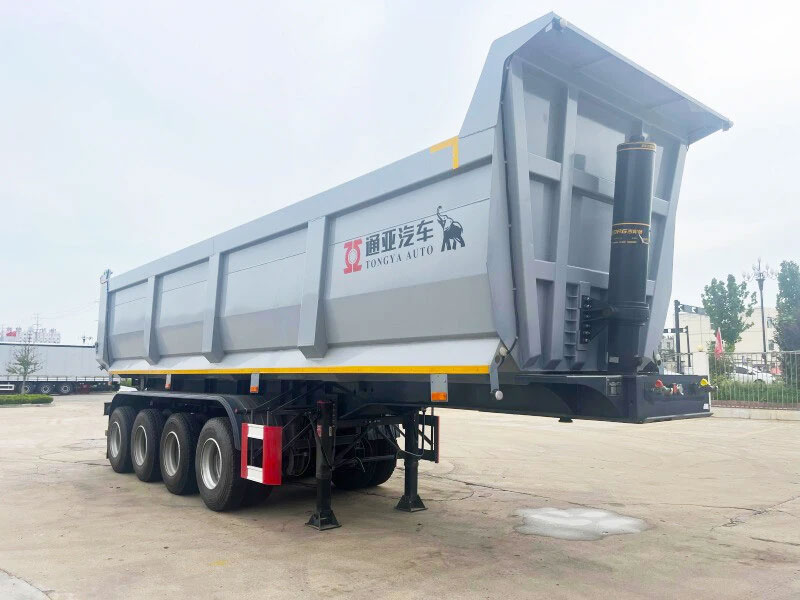

High-Quality Rear Dump Semi Trailers
- Exceptional loading and unloading efficiency, capable of completing material discharge rapidly through its hydraulic tipping system, sig……
Product Description
- Exceptional loading and unloading efficiency, capable of completing material discharge rapidly through its hydraulic tipping system, significantly enhancing workflow productivity;
- Complete and clean unloading performance, minimizing material retention during transport and discharge operations, thereby optimizing cargo turnover rates;
- Cost-effective transportation solution, eliminating manual loading/unloading processes and substantially reducing labor expenses and operational overheads.



Main Dimension | |
Manufacturer: | TONGYA AUTOMOBILE.CO.,LTD |
Place of Origin: | Shandong, China |
Type: | Dump Truck Semi Trailer |
Dimension: | 10500*2550*3700mm (can be customized) |
Tare Weight: | About 12-15T (12.62T) |
Loading Capacity: | ≤60T |
Side Wall Thickness(mm): | 5mm 450 Wear-resistant steel |
Bottom Plate Thickness(mm): | 6mm 450 Wear-resistant steel |
Chassis | |
Main Beam: | Material Q355D Steel |
Height::500mm | |
Upper plate:16mm | |
Middle plate:10mm | |
Down plate:18mm | |
King Pin: | Jost brand 3.5 inch |

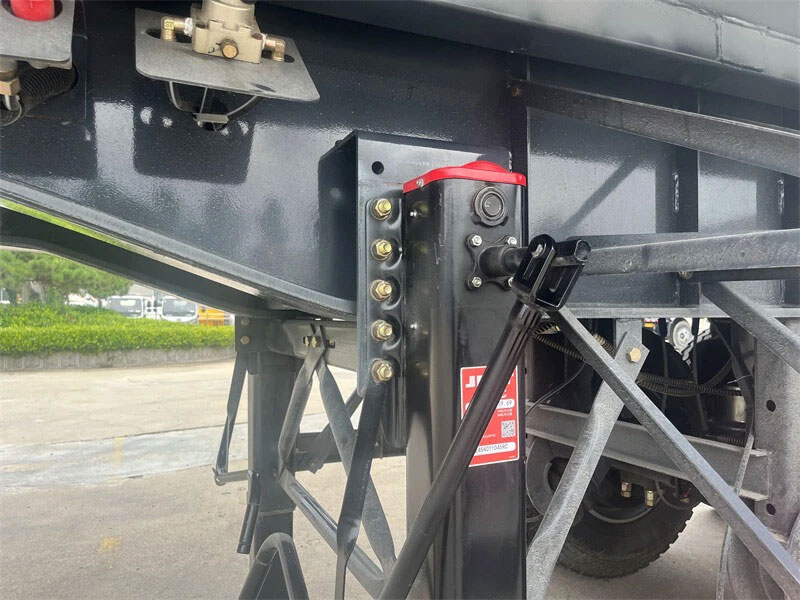

Support Legs: | Jost brand A300C |
Axle: | 13T*4, FUWA Brand (Chinese famous brand) |
Suspension: | Mechanical suspension |
Spring Leaf: | 90(width)mm*13(thickness)mm*10layer |

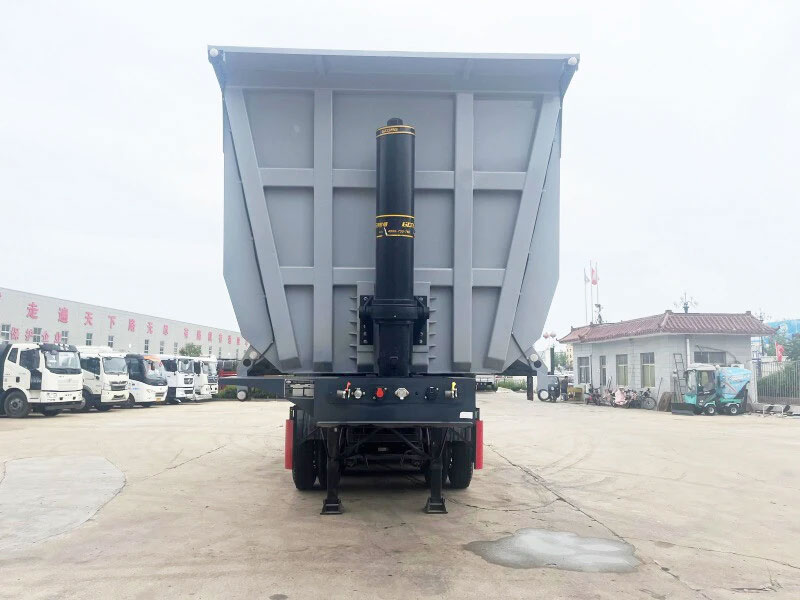

Lifting System: | Georg brand GFC200-5-07200-K0486 |
Tire: | 12R22.5*17 Triangle brand ( various tire brands are available) |
Rim: | 9.0-22.5*17 |
ABS: | WABCO |
Emergency Brake Valve: | WABCO |
Spare Tire: | 1 Piece |
Painting: | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories: | One standard tool box |
