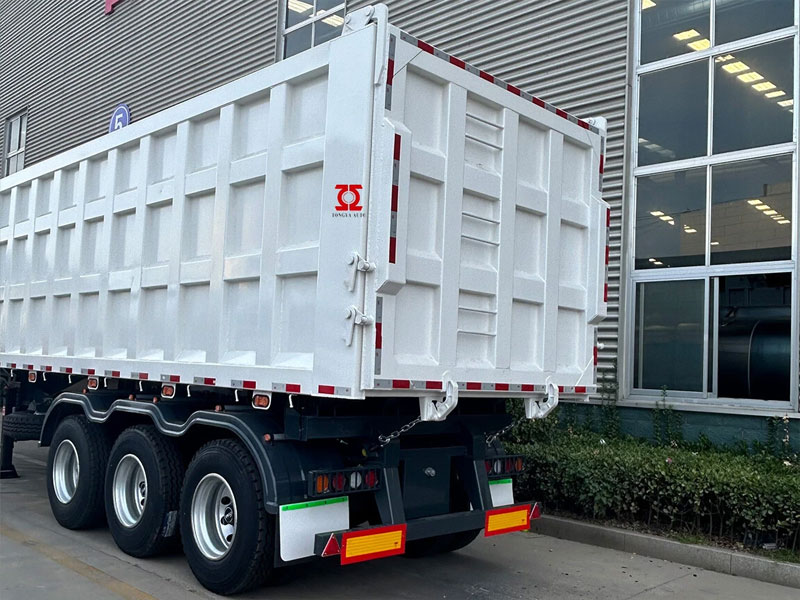

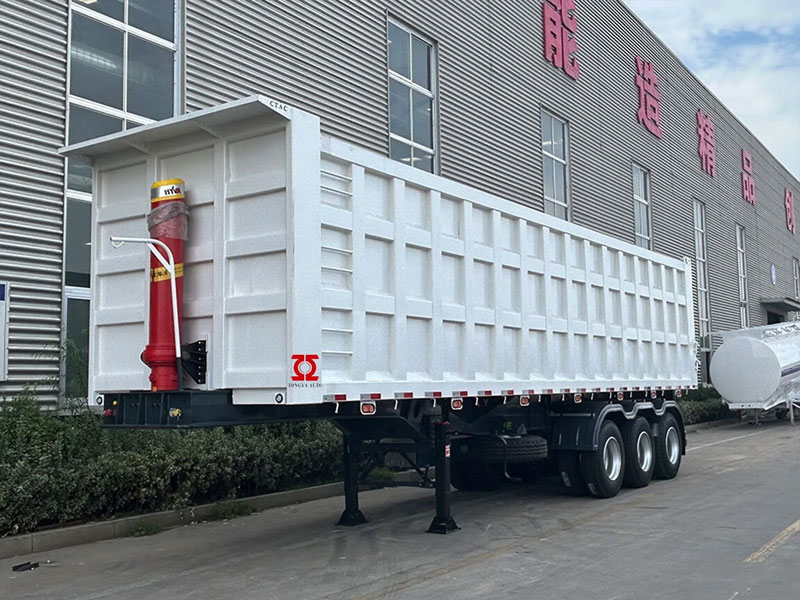

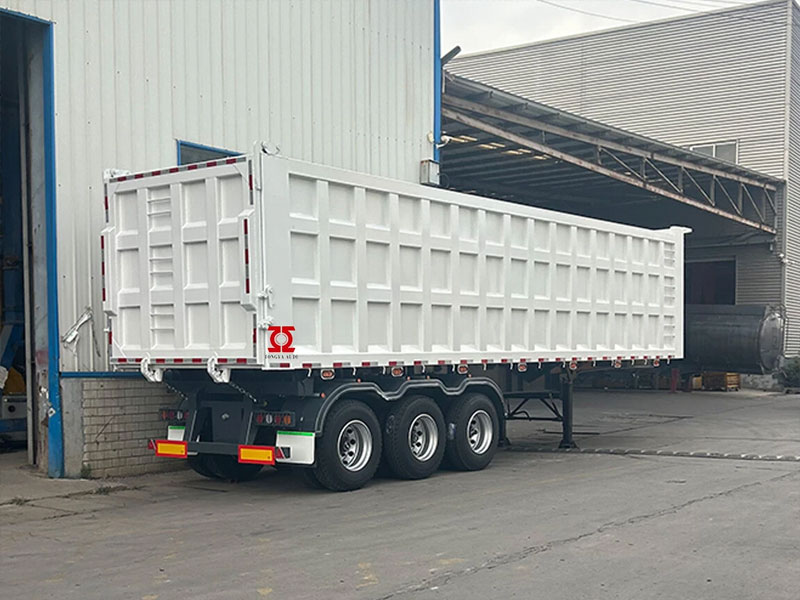

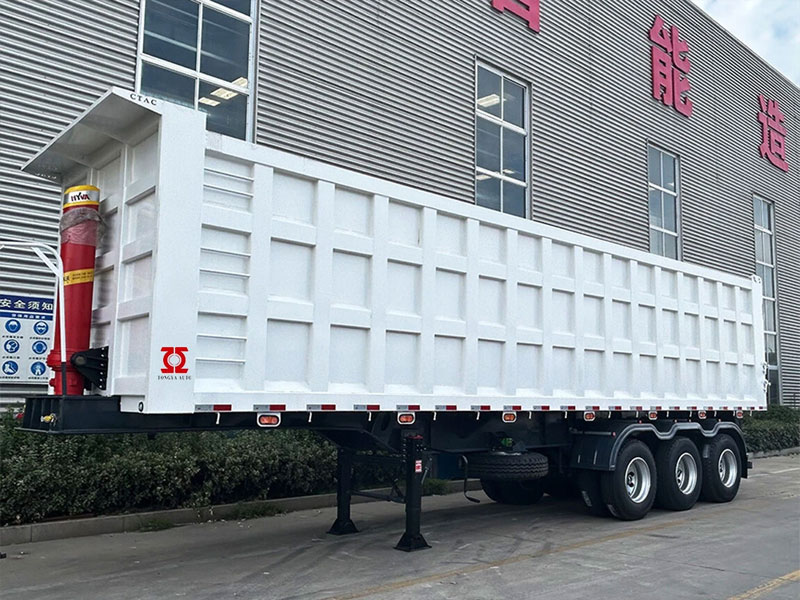

50T Rear Dump Semi Trailer
- High-efficiency loading and unloading system significantly reduces operation time and manual labor requirements; Excellent stability ……
Product Description
- High-efficiency loading and unloading system significantly reduces operation time and manual labor requirements;
- Excellent stability and traction performance ensures reliable operation in challenging environments including mining areas and muddy construction sites;
- Cost-effective transportation solution with enhanced safety features to minimize overall operating expenses.
| Specifications | |
| Manufacturer: | TONGYA AUTOMOBILE.CO.,LTD |
| Place of Origin： | Shandong, China |
| Type： | 50T Rear Dump Semi Trailer |
| Dimension: | 9500*2500*3850mm (can be customized) |
| Tare Weight: | About 11-12T |
| Loading Capacity: | ≤40T |
| Side Wall Thickness(mm): | 4mm NM450 Wear-resistant steel |
| Bottom Plate Thickness(mm): | 6mm NM450 Wear-resistant steel |
| Chassis | |
| Main Beam: | Material T700 Steel |
| Height::500mm | |
| Upper plate:12mm | |
| Middle plate:8mm | |
| Down plate:14mm | |
| King Pin: | Jost brand 2.0 inch |
| Support Legs： | Jost brand A300C |
| Axle: | 13T*3, Fuwa Brand |
| Suspension: | Mechanical suspension |
| Spring Leaf: | 90(width)mm*13(thickness)mm*10layer |
| Lifting System: | HYVA brand |
| Tire: | 385/65R22.5 Chengshan brand ( various tire brands are available) |
| Rim: | 11.75-22.5 |
| ABS: | WABCO |
| Emergency Brake Valve: | WABCO |
| Spare Tire: | 1 Piece |
| Painting: | Advanced powder spraying with baking enamels processes |
| Accessories: | One standard tool box |
