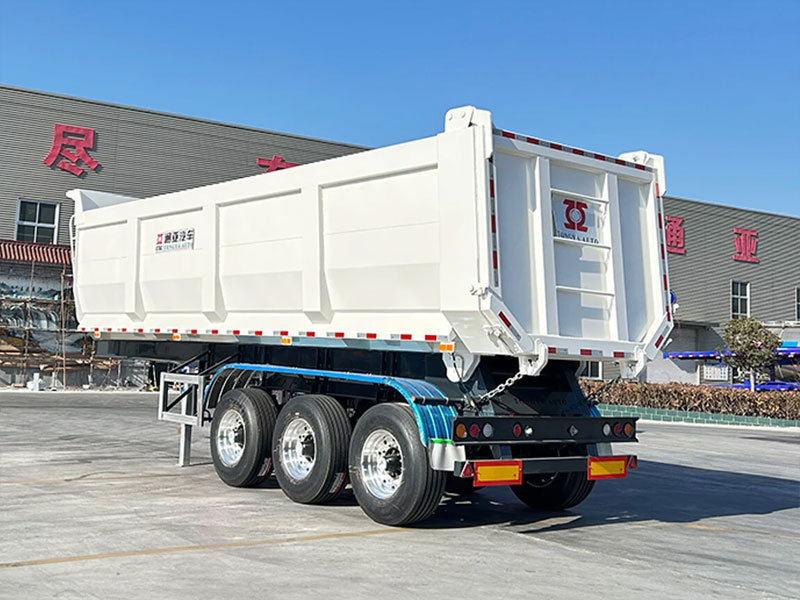

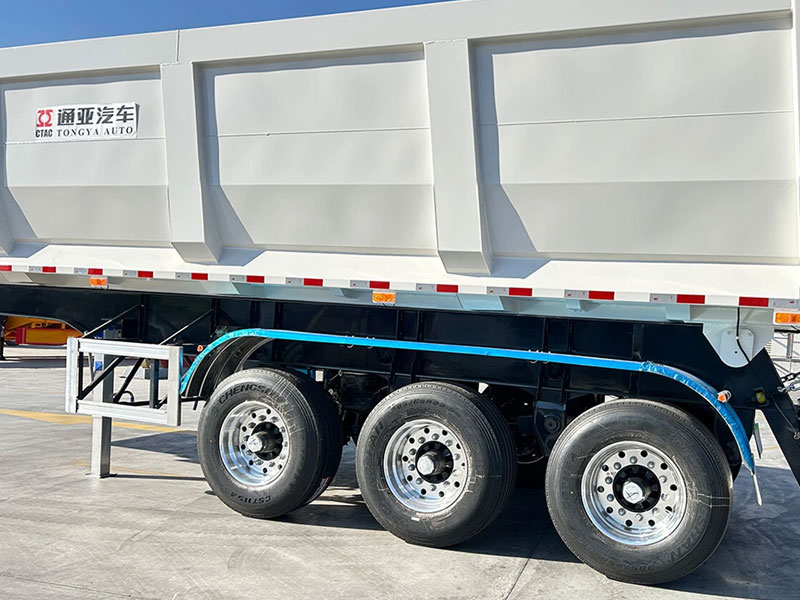

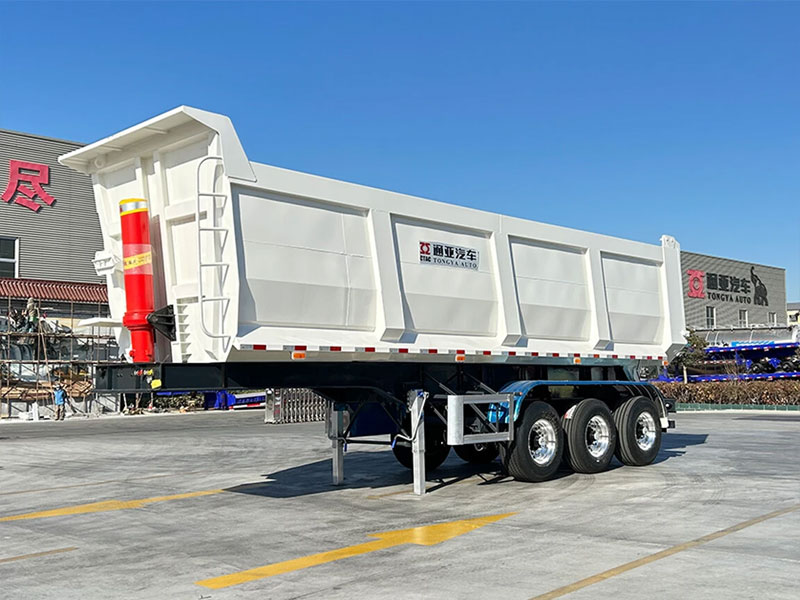

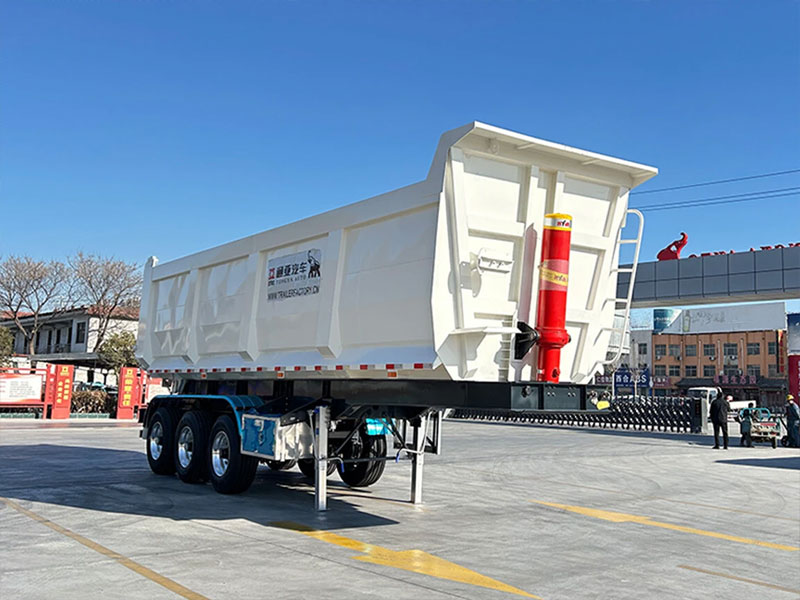

40T Rear Dump Semi Trailer
- The 40T rear dump semi trailer is a heavy-duty hauling solution engineered for efficient transportation and rapid discharge of bulk mater……
Product Description
The 40T rear dump semi trailer is a heavy-duty hauling solution engineered for efficient transportation and rapid discharge of bulk materials including aggregates, soil, demolition waste and industrial byproducts. Featuring a robust hydraulic lifting mechanism, this trailer enables precise tilting operations for complete material discharge in demanding work cycles. Its reinforced chassis and high-capacity design make it indispensable for large-scale construction projects, mining operations, agricultural applications and infrastructure development where high-volume material handling is required. The optimized weight distribution and durable components ensure reliable performance when handling maximum payloads across various job site conditions.
| Specifications | |
| Manufacturer: | TONGYA AUTOMOBILE.CO.,LTD |
| Place of Origin： | Shandong, China |
| Type： | Dump Truck Semi Trailer |
| Dimension: | 9500*2500*3850mm (can be customized) |
| Tare Weight: | About 11-12T |
| Loading Capacity: | ≤40T |
| Side Wall Thickness(mm): | 4mm NM450 Wear-resistant steel |
| Bottom Plate Thickness(mm): | 6mm NM450 Wear-resistant steel |
| Chassis | |
| Main Beam: | Material T700 Steel |
| Height::500mm | |
| Upper plate:12mm | |
| Middle plate:8mm | |
| Down plate:14mm | |
| King Pin: | Jost brand 2.0 inch |
| Support Legs： | Jost brand A300C |
| Axle: | 13T*3, BPW Brand |
| Suspension: | Frist axle is suspension (can be lifted) ,Rear two axles isMechanical suspension |
| Spring Leaf: | 90(width)mm*13(thickness)mm*10layer |

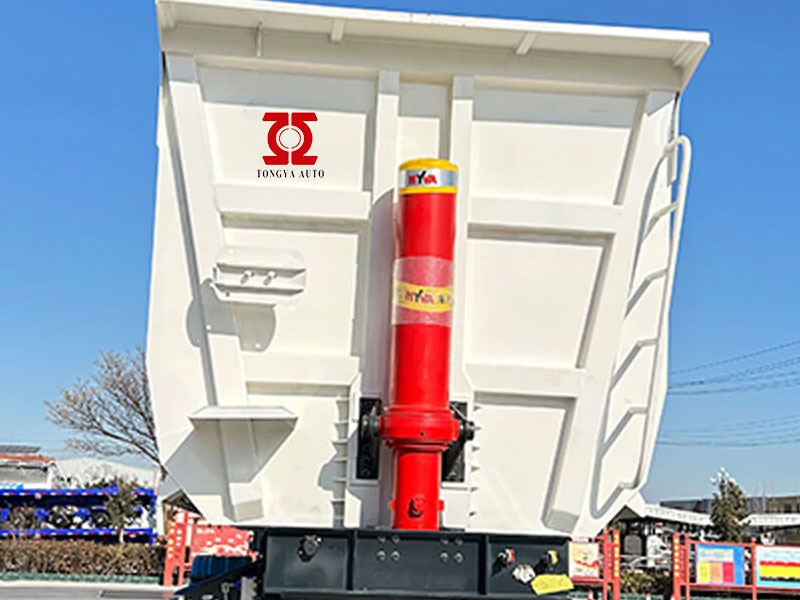

| Lifting System: | HYVA brand |

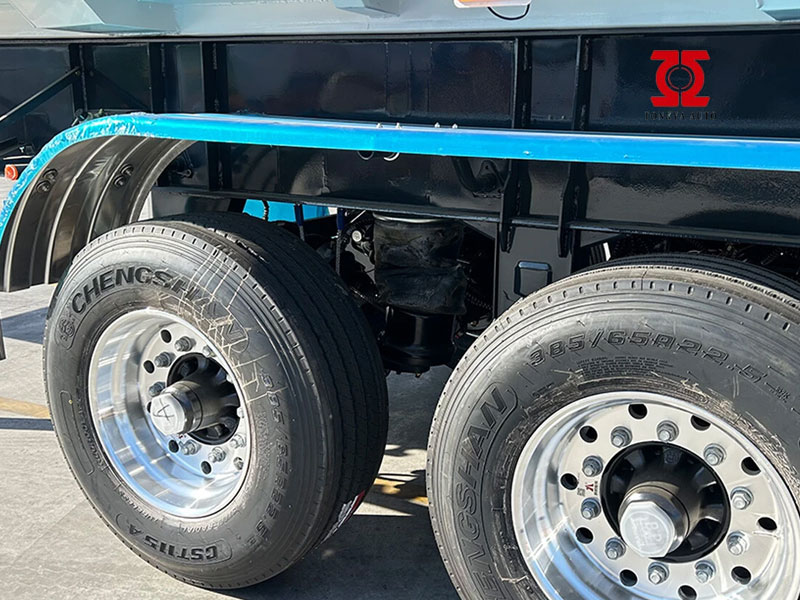

| Tire: | 385/65R22.5 Chengshan brand ( various tire brands are available) |
| Rim: | 11.75-22.5 |
| ABS: | WABCO |
| Emergency Brake Valve: | WABCO |
| Spare Tire: | 1 Piece |
| Painting: | Advanced powder spraying with baking enamels processes |
| Accessories: | One standard tool box |
40T Rear Dump Semi Trailer Advantage:
1. Efficient unloading function. Through the hydraulic cylinder, it can quickly dump out the goods in the compartment, which greatly saves the unloading time and improves the working efficiency;
2. Wide utility. It can transport all kinds of bulk goods, such as coal, ore, sand and so on.
