Rear Dump Semi Trailer

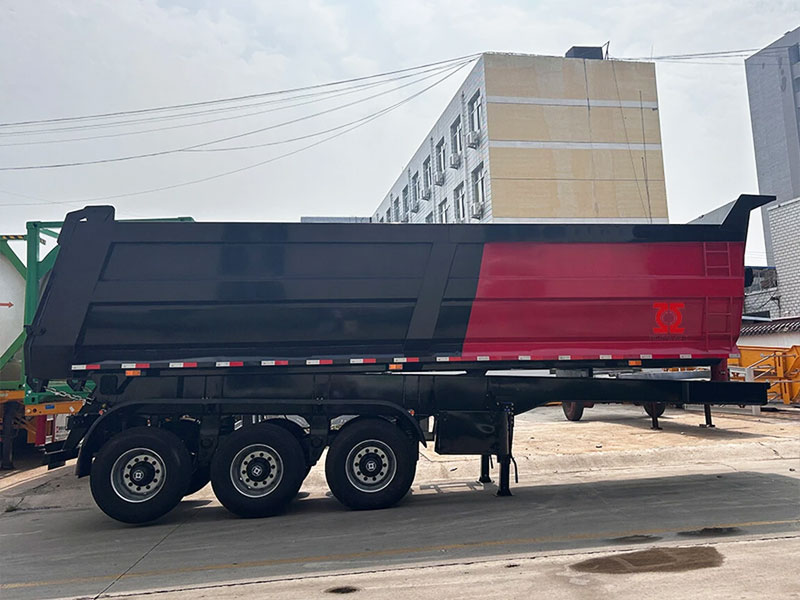

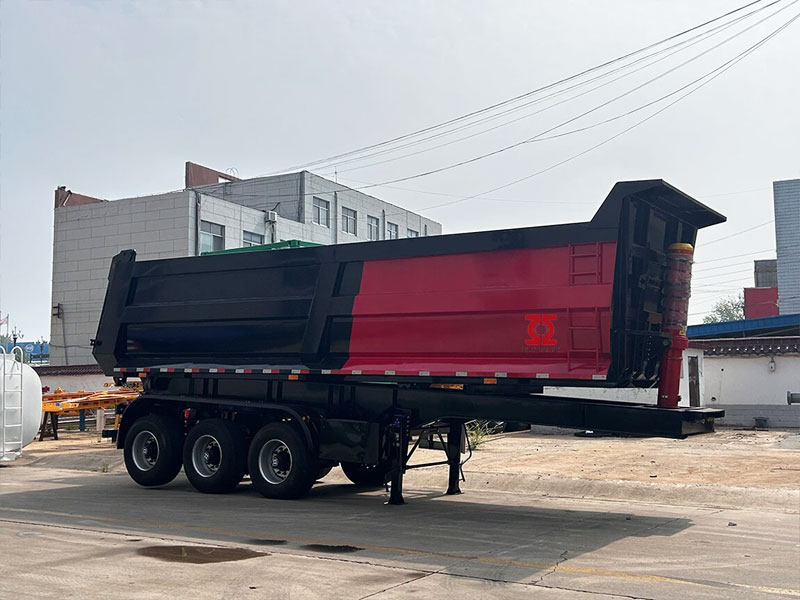

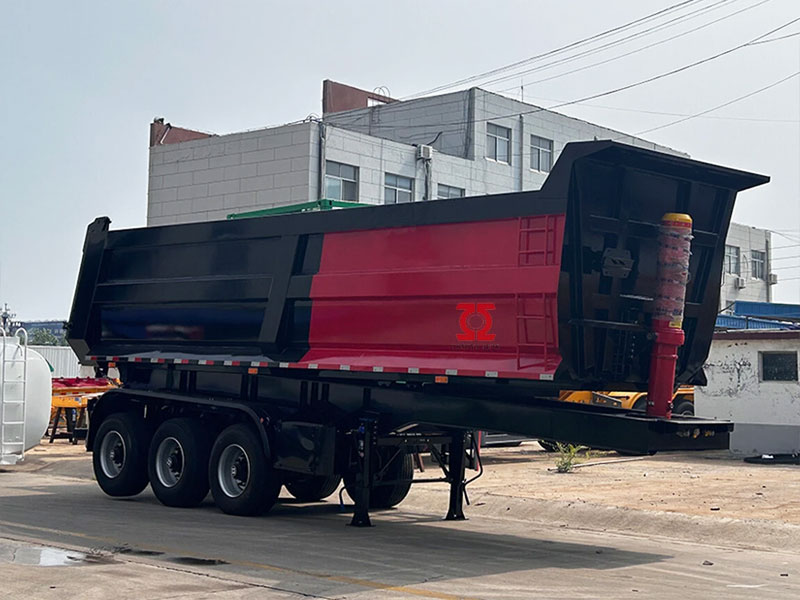

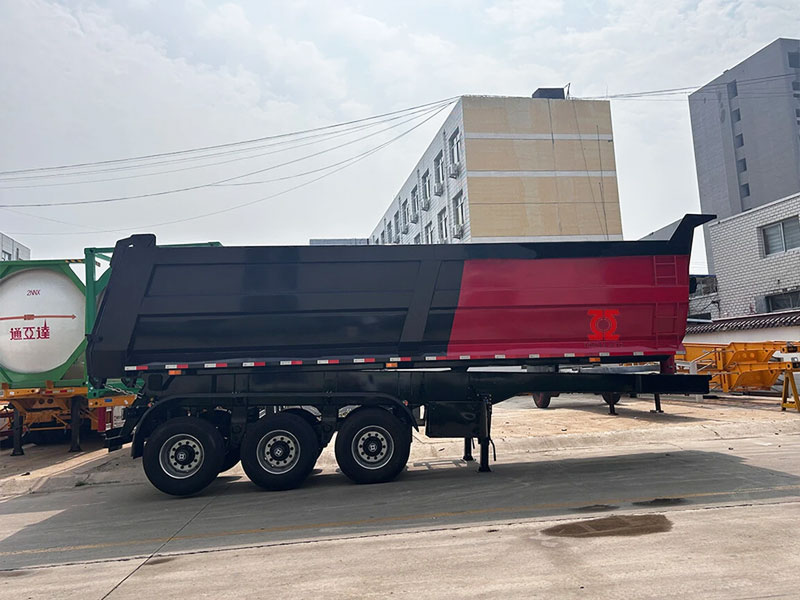

3 Axle Rear Dump Semi Trailer

3 Axle Rear Dump Semi Trailer

  • This advanced 3-axle rear dump semi-trailer features cutting-edge engineering technology and an optimized design, making it particularly ……
Product Description

This advanced 3-axle rear dump semi-trailer features cutting-edge engineering technology and an optimized design, making it particularly well-suited for efficiently transporting various bulk granular materials. With its robust construction and superior load-bearing capacity, the trailer is ideal for hauling heavy commodities like coal, iron ore, crushed stone, sand, gravel, and other construction aggregates. The innovative dumping mechanism ensures quick, safe unloading operations, while the durable chassis and suspension system provide reliable performance even in demanding working conditions. Its balanced weight distribution across three axles offers enhanced stability and road grip during transportation, making it a perfect solution for mining operations, construction projects, and bulk material logistics. The trailer's spacious cargo box and reinforced side walls are specifically engineered to handle the rigors of abrasive materials while maintaining operational efficiency.

Specifications:

Main Dimensions
Dimension11280*2495*3970mm ( outside)10500*2300*1700mm (work space ) or customize
Tare weightAbout 15600KGS
Total Volume(m3)37 m³ or less than 80tons
Side wall thickness(mm)6mm Q235 steel
Bottom plate thickness(mm)8mm /Q235 steel
Lifting systemFull set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder
Chassis
Main BeamsHeight:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle3 axles, FUWA/HUAJING brand  16tons per axles
Landing GearJOST A300C or TONGYA 28T
King PinJOST 2.00 or 3.5 inch bolt-in king pin
SuspensionMechanical suspension/ America type /
Leaf Spring90(W)mm*13(Thickness)mm*10 Layer
Pneumatic Braking SystemWABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks.
Rim9.00-22.5/8.00-20/8.5-20 China Brand
Tire12R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABSOptional
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
AccessoriesOne standard tool box
Shipping TermsBy Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .
