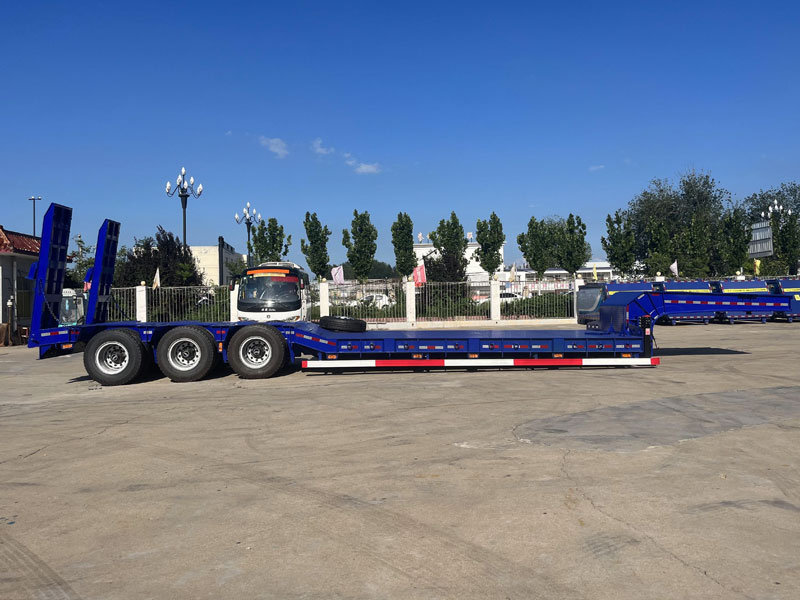

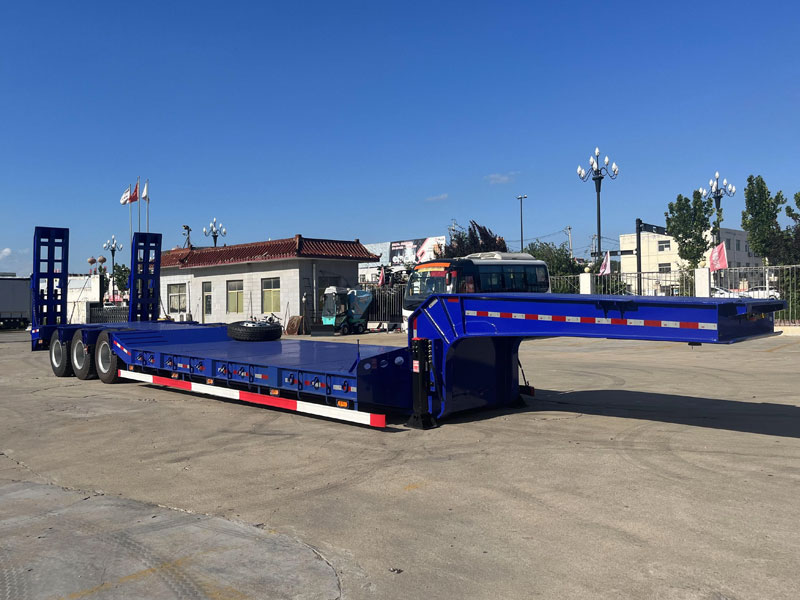

Low Bed Semi Trailer with Ladder
- Heavy Equipment Transport Specialist - Our trailers are engineered specifically for safe and efficient transportation of excavators……
Product Description
- Heavy Equipment Transport Specialist - Our trailers are engineered specifically for safe and efficient transportation of excavators, loaders, bulldozers, and other oversized construction machinery.
- High-Capacity Design - Built to handle 45-55 ton payloads with a spacious 13m×3m platform and ultra-low 820mm deck height for optimal stability and loading ease.
- Fully Customizable Solutions - We offer tailored modifications to loading capacity, dimensions, and structural design to perfectly match your specific hauling requirements.
- Industry Leader with Global Reach - As China's premier semi-trailer manufacturer with roots since 1982, we've been delivering quality worldwide through our export operations established in 2006.
- Mass Production Capability - Supported by our team of 400+ certified welders and fabricators, we guarantee on-time delivery while maintaining strict quality standards.
Specifications:
| Weight: | Tare Weight | 11.5T |
| Loading capacity | 50 T | |
| Total weight | 61.5 T | |
| Dimensions: | Outside dimension | 13000*3000*2950 mm (The final dimensions depend on the final design drawings) |
| Frame: | Design/welding technology | Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. |
| Main beam | Opting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 20mm, width 140mm.Middle Flange thickness 12mm; | |
| Cross beam | Heavy duty Special U steel | |
| Side beam | 250mm high I beam | |
| Floor | 5 mm thickness chequer plate | |

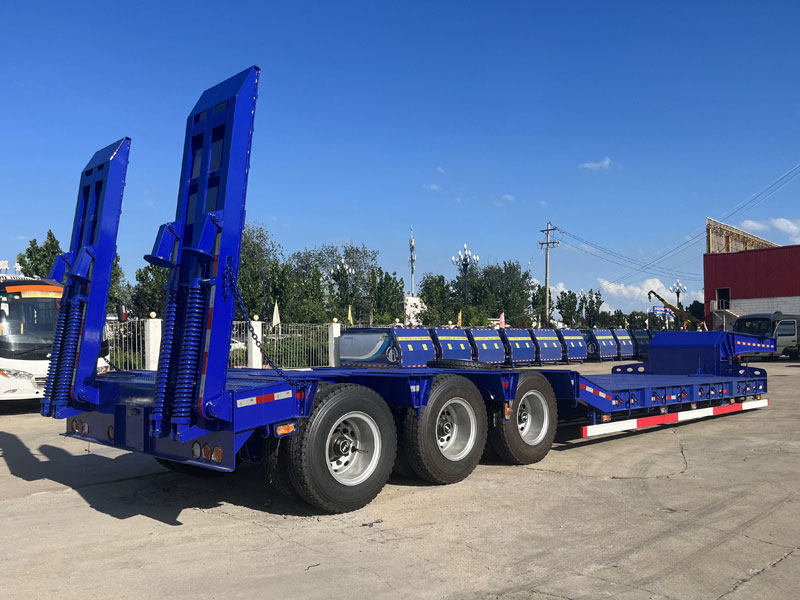

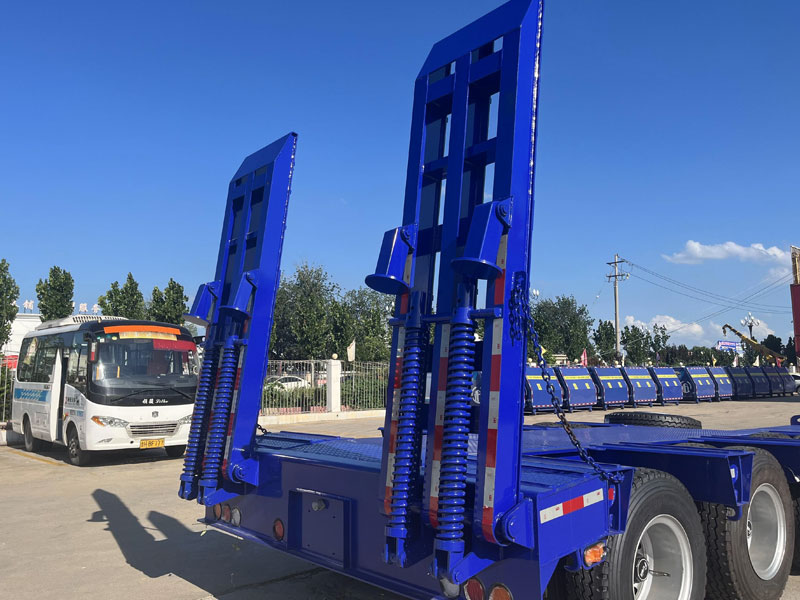

| Rear ladder (ramps) | Two pieces spring steel ladder, (Q345B steel) | |

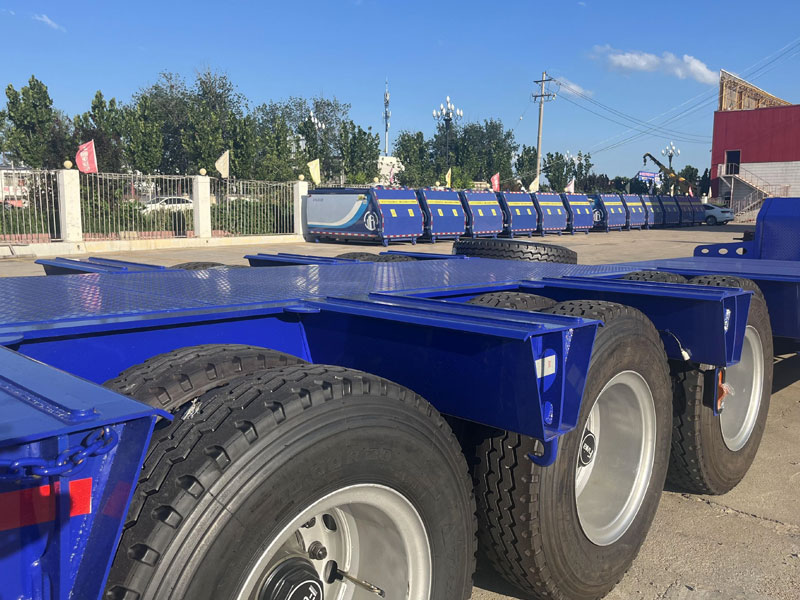

| OEM parts: | Axle | 3 *13T capacity, FUWA brand (Chinese best brand) |
| King Pin | 2.00’’/3.5’’ bolting king pin, JOST brand | |
| Suspension | Heavy duty undermount suspension with equalizers, American design (high-strength type) | |
| Steel Spring | 10pcs leaf spring, 13mm thickness, 90mm width | |

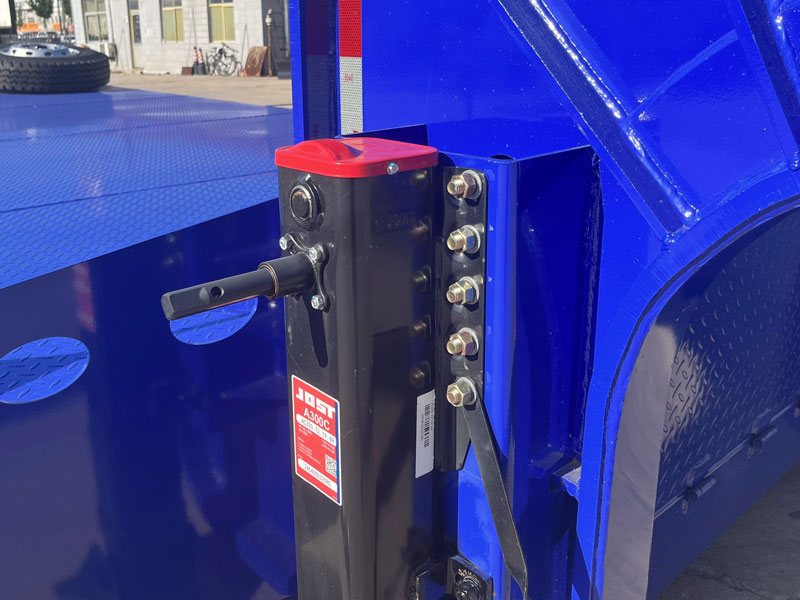

| Landing legs | JOST brand, manual operation landing legs with sand shoe | |
| Tire specs | 10R20, Triangle brand (Chinese famous brand) | |
| Rim | 6.5(Chinese famous brand) | |
| Number of wheel | 13 pieces(including one spare wheel) | |
| Brake system | WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector. | |
| ABS system | Without（Can be choose freely,450 USD/set） | |
| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED lights | |
| Miscellaneous: | Painting | color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| Spare Tire Carriers | Two set of heavy duty spare wheel carriers | |
| Tools box | One piece (1. 0*0. 5*0. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) | |
| Note: All the details not mentioned will design as the final confirmation with the customer | ||
