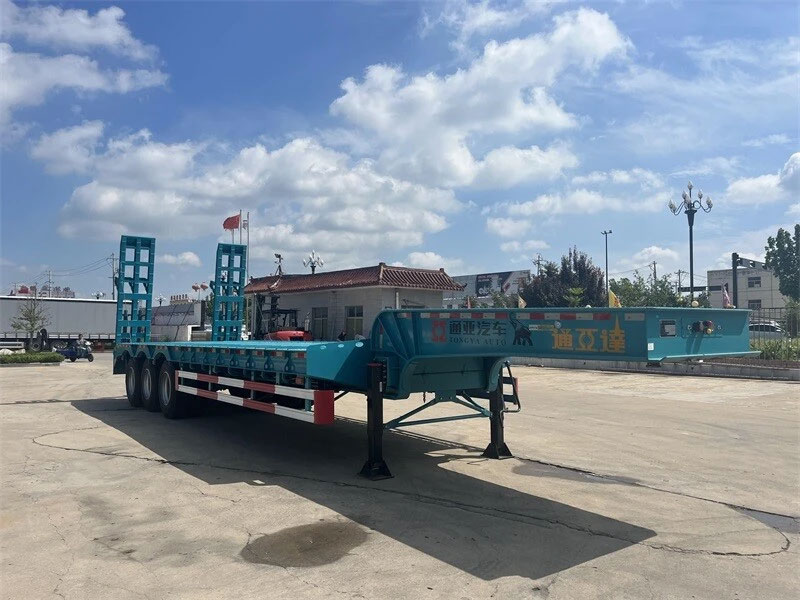

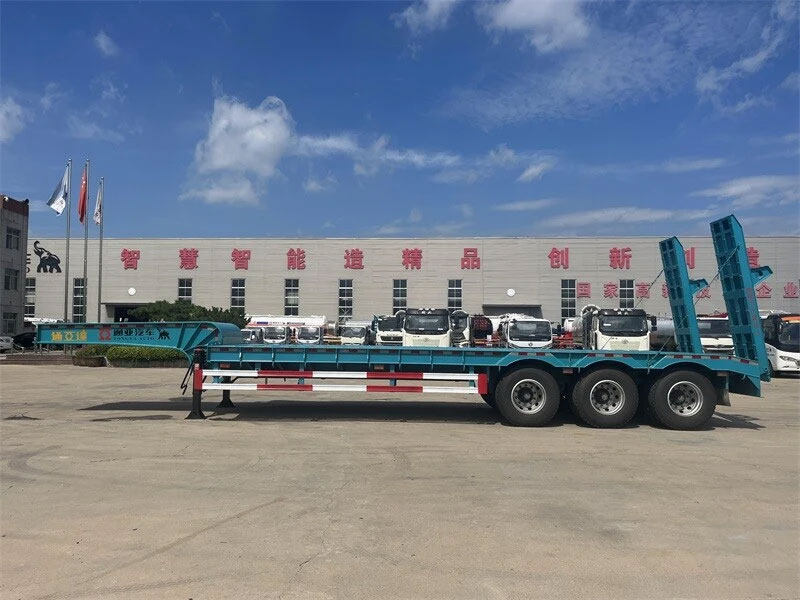

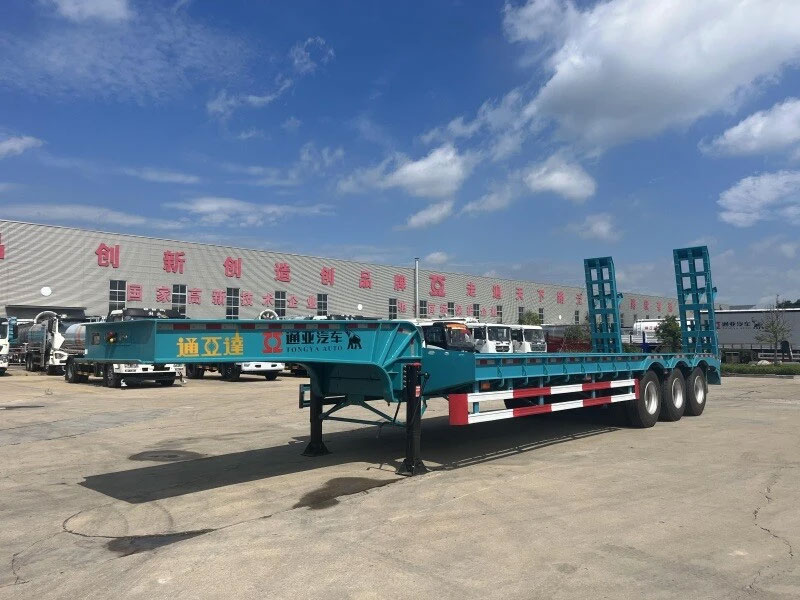

60T Low Bed Semi Trailer
- High-Capacity Heavy Hauler - Our 60-ton capacity low bed semi-trailers are built for extreme loads, with fully customizable dimensi……
Product Description
- High-Capacity Heavy Hauler - Our 60-ton capacity low bed semi-trailers are built for extreme loads, with fully customizable dimensions and configurations to match your specific transport requirements.
- Industry-Leading Expertise - As China's premier trailer manufacturer with over 40 years of experience since 1982, we deliver proven reliability for the most demanding heavy haul operations.
- Global Logistics Ready - We support worldwide shipping via both RO-RO and bulk vessel options, ensuring flexible and cost-effective delivery to your destination.
| Specification | ||
| Weight: | Tare Weight | 12T |
| Loading capacity | 60 T | |
| Total weight | 72 T | |
| Dimensions: | Outside dimension | 13000*3000*3180 mm (The final dimensions depend on the final design drawings) |
| Frame: | Design/welding technology | Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. |
| Main beam | Opting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 25mm, width 140mm.Middle Flange thickness 12mm; | |
| Cross beam | Heavy duty Special U steel | |
| Side beam | 250mm high I beam | |
| Floor | 5 mm thickness chequer plate | |
| Rear ladder (ramps) | Two pieces spring steel ladder, (Q345B steel) | |
| OEM parts: | Axle | 3 *13T capacity, FUWA brand (Chinese best brand) |
| King Pin | 2.00’’/3.5’’ bolting king pin, JOST brand | |

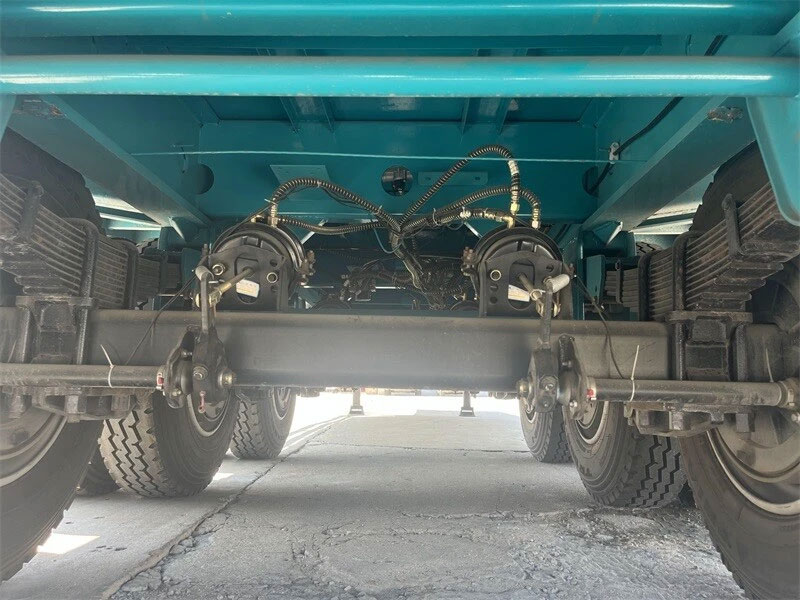

| Suspension | Heavy duty undermount suspension with equalizers, American design (high-strength type) | |
| Steel Spring | 10pcs leaf spring, 13mm thickness, 90mm width | |

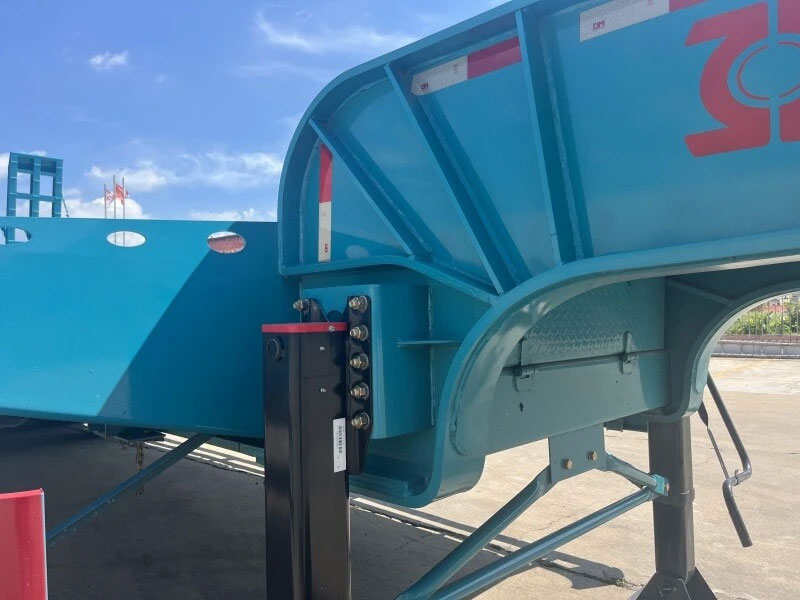

| Landing legs | JOST brand, manual operation landing legs with sand shoe | |

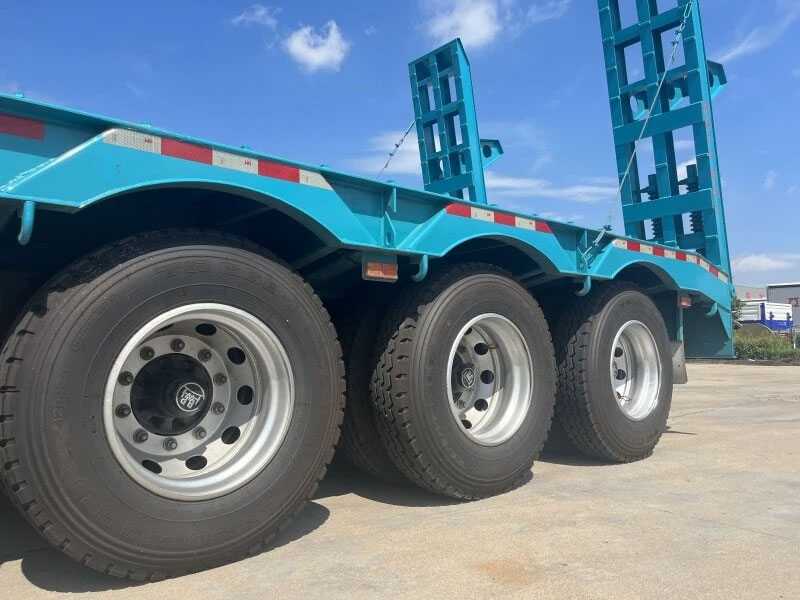

| Tire specs | 315/80R22.5., Triangle brand (Chinese famous brand) | |
| Rim | 9.0-22.5(Chinese famous brand) | |
| Number of wheel | 13 pieces(including one spare wheel) | |
| Brake system | WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector. | |
| ABS system | Without（Can be choose freely,450 USD/set） | |
| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED lights | |
| Miscellaneous: | Painting | color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| Spare Tire Carriers | Two set of heavy duty spare wheel carriers | |
| Tools box | One piece (1. 0*0. 5*0. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) | |
| Note: All the details not mentioned will design as the final confirmation with the customer | ||
60tons low bed trailer is an very popular model in the low bed trailers that we sold to our oversea customers !
In consideration of our customers are from different countries, and their government have different road safety rules and regulations, so the specifications of our 60tons low bed trailer is different too, as an manufacturer,we can design the trailers according to the different requirements.
