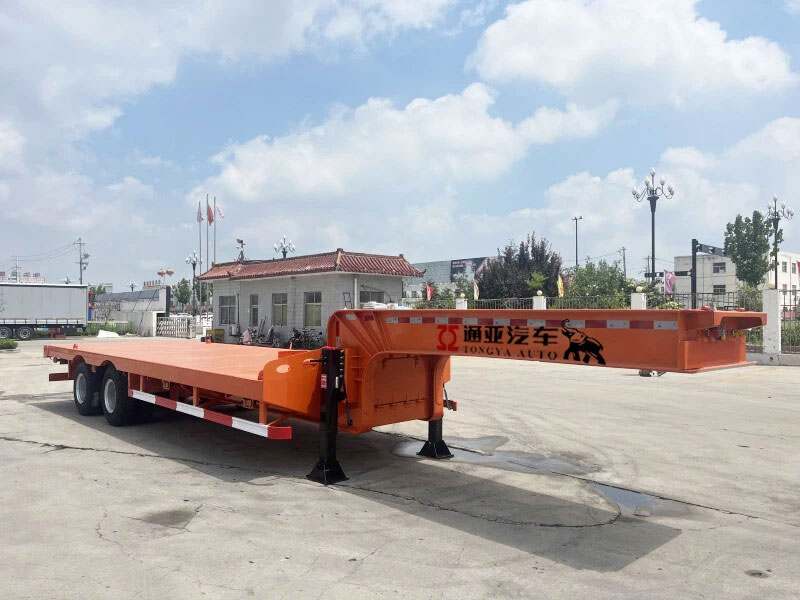

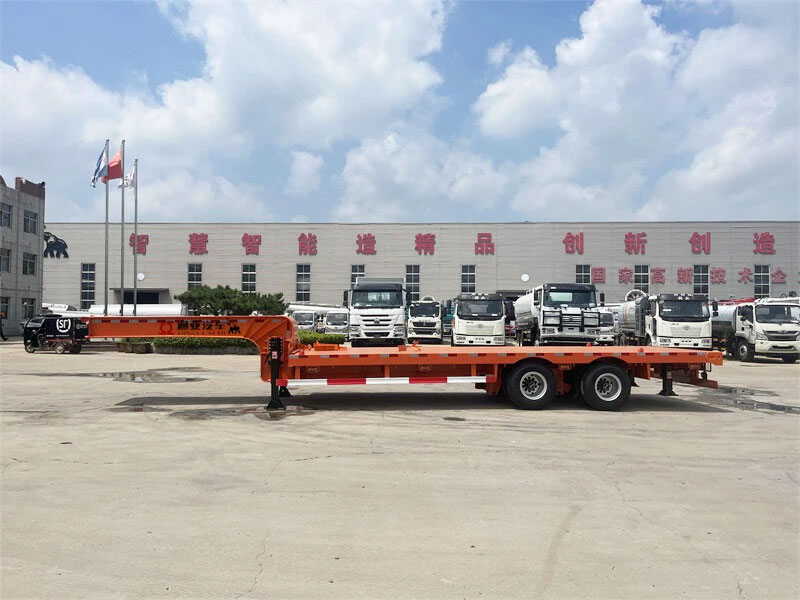

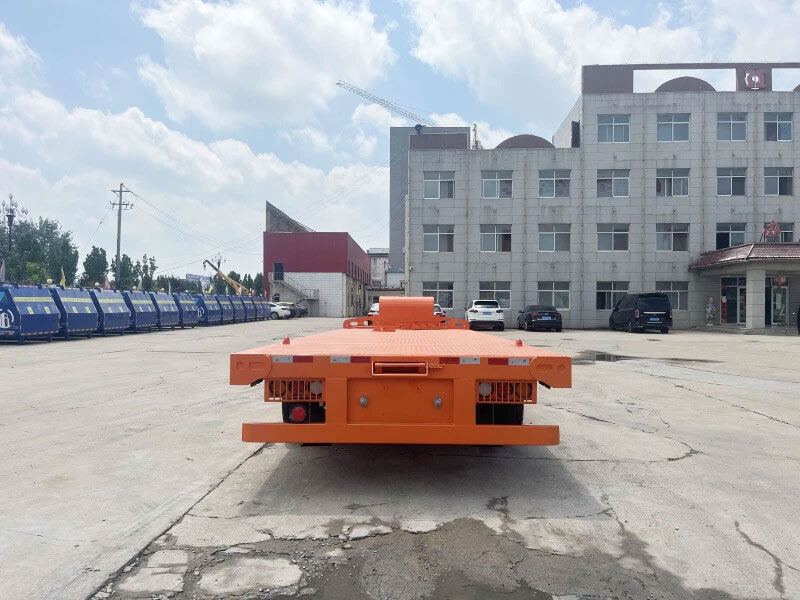

30T Low Bed Semi Trailer
- Professional Heavy Equipment Transporter - Specifically designed for safe and efficient transportation of excavators, loaders, bull……
Product Description
- Professional Heavy Equipment Transporter - Specifically designed for safe and efficient transportation of excavators, loaders, bulldozers and various construction machinery.
- Optimized Load Capacity - Engineered with 30-ton payload capability, featuring a generous 10×2.5m deck area and 900mm low-profile design for enhanced stability.
- Tailored Transport Solutions - Fully customizable in loading capacity, platform dimensions and structural configuration to meet your specific operational requirements.
- Industry-Leading Manufacturer - China's premier semi-trailer specialist with manufacturing expertise since 1982 and global export experience spanning since 2006.
- Reliable Production Capacity - Backed by our team of 400+ certified welding professionals ensuring timely delivery while maintaining stringent quality standards.
| Specification | ||
| Weight: | Tare Weight | 8T |
| Loading capacity | 30 T | |
| Total weight | 61.5 T | |
| Dimensions: | Outside dimension | 10000*2500*1550 mm (The final dimensions depend on the final design drawings) |
| Frame: | Design/welding technology | Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. |
| Main beam | Opting for high strength Q345B steel, 500mm deep welded I-section main beams Top Flange thickness 16mm, width 140mm; Bottom Flange thickness 18mm, width 140mm.Middle Flange thickness 10mm; | |
| Cross beam | Heavy duty Special U steel | |
| Side beam | 200mm high I beam | |
| Floor | 4 mm thickness chequer plate | |
| Rear ladder (ramps) | Without | |
| OEM parts: | Axle | 2 *11.5T capacity, FUWA brand (Chinese best brand) |
| King Pin | 2.00’’/3.5’’ bolting king pin, JOST brand | |

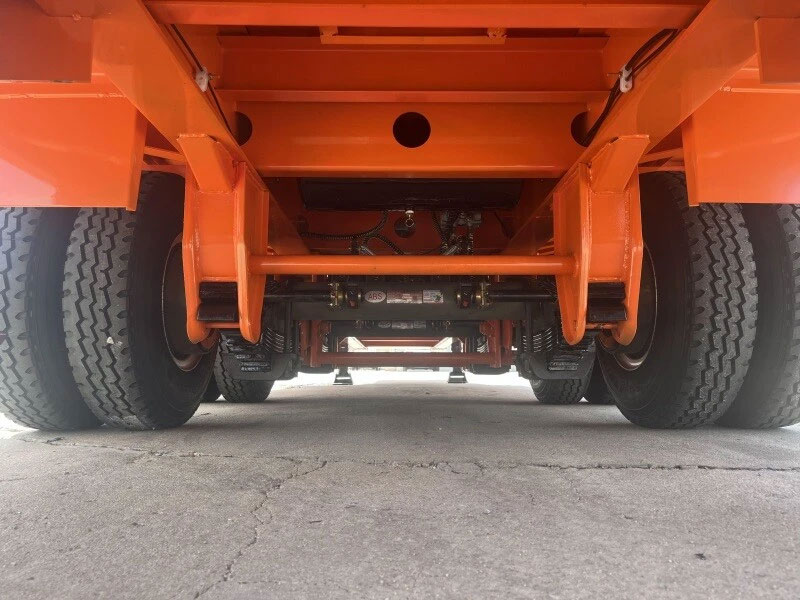

| Suspension | Heavy duty undermount suspension with equalizers, American design (high-strength type) | |
| Steel Spring | 10pcs leaf spring, 13mm thickness, 90mm width | |

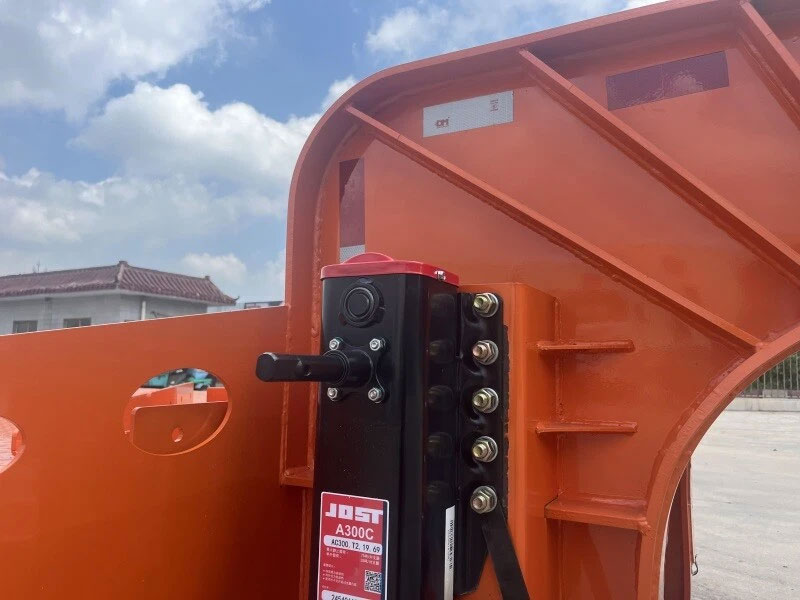

| Landing legs | JOST brand, manual operation landing legs with sand shoe | |
| Tire specs | 8.25R15, Triangle brand (Chinese famous brand) | |
| Rim | 6.5(Chinese famous brand) | |
| Number of wheel | 9pieces(including one spare wheel) | |
| Brake system | WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector. | |
| ABS system | Without（Can be choose freely,450 USD/set） | |

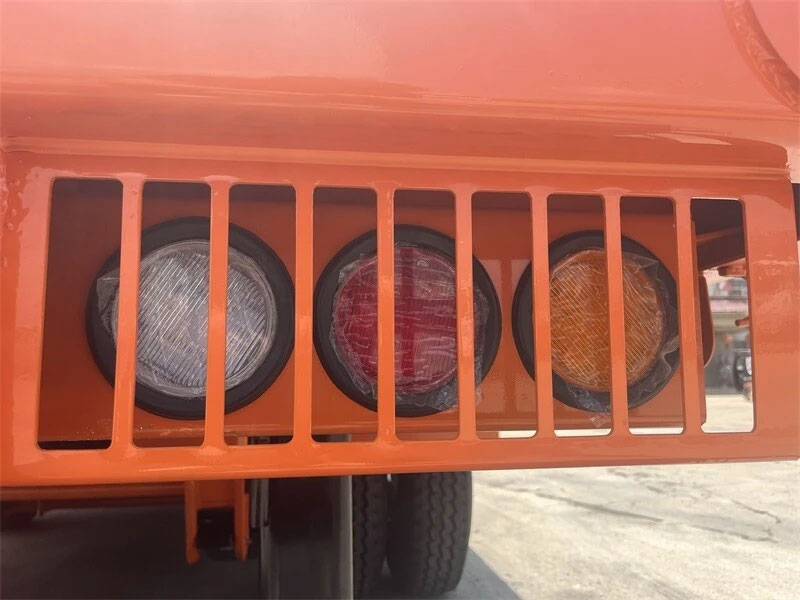

| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED lights | |
| Miscellaneous: | Painting | color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| Spare Tire Carriers | Two set of heavy duty spare wheel carriers | |
| Tools box | One piece (1. 0*0. 5*0. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) | |
| Note: All the details not mentioned will design as the final confirmation with the customer | ||
Our engineers will design the trailer main beam chassis depend on the load capacity that provided by the end user customer, and we have 2 axle 3 axle low bed trailer, we choose Q345B high tensile steel in an thicken thickness, with automatic Submerged-Arc welding processes, to make sure the low bed trailer with an strong loading deck.
