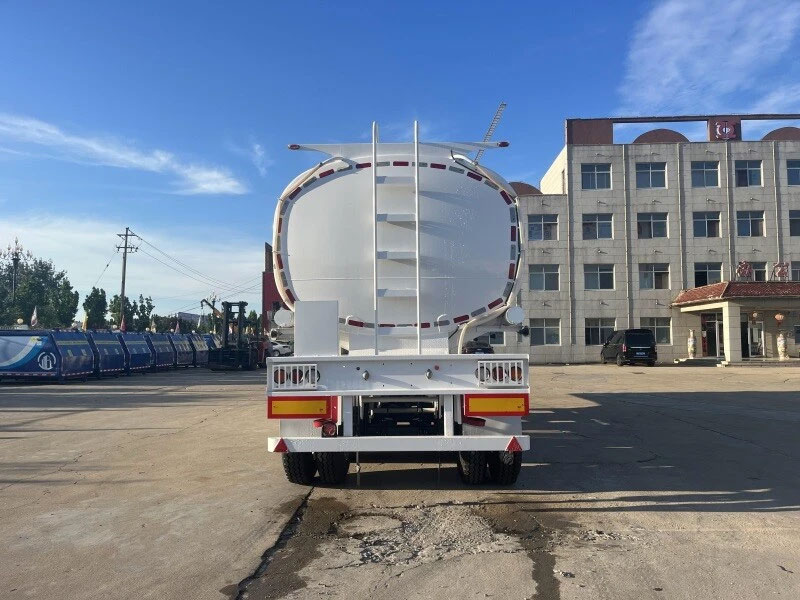

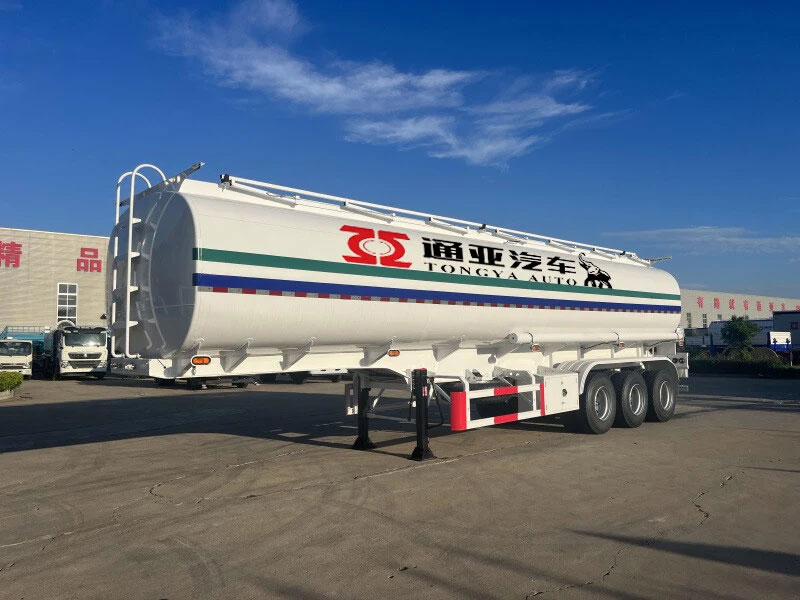

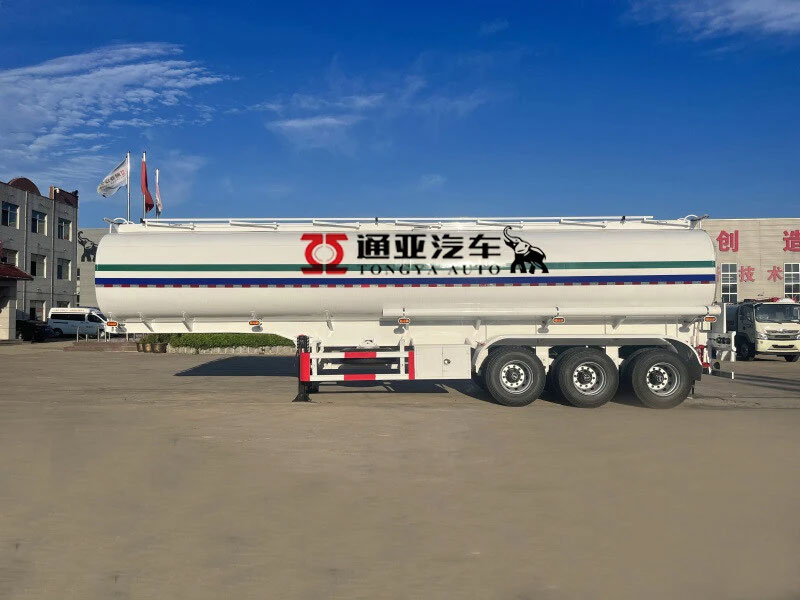

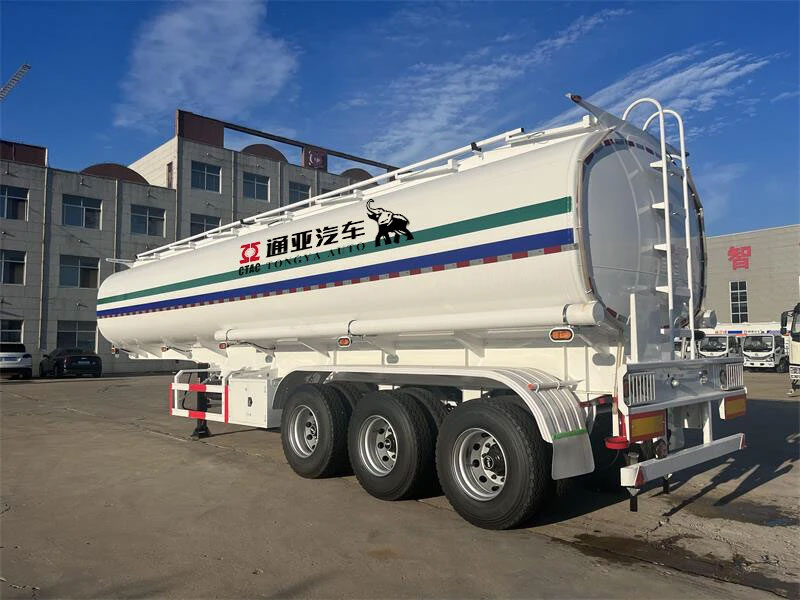

Tongya 40000L Fuel tanker semi trailer
- Fuel tanker semi trailer is engineered for safe transportation of gasoline, diesel, palm oil, and other liquid cargoes. As C……
Product Description
Fuel tanker semi trailer is engineered for safe transportation of gasoline, diesel, palm oil, and other liquid cargoes.
As China's top professional manufacturer with 40+ years of experience since 1982, we specialize in fully customized trailers - designed and built to your exact specifications and operational requirements.
| Basic Information | ||
| Outer size | 12000x2500x3780mm | |
| Design Capacity (gross) | 40000L | |
| Tare weight (±3%) | 10500KG | |
| Type | Tri-axle semi-trailer | |
| Tank assembly | ||
| Compartment | Two compartments or Optional | |
| Front/Rear end plate | Material | Carbon steel |
| Front/Rear end plate | thickness | 6mm |
| Tank body (with insulating layer) | Material | Carbon steel |
| Thickness | 5mm | |
| Wave-proof plate thickness | 4mm | |
| Manhole cover | Diameter | 500mm |
| Material | Factory standard | |
| Number | 2-9pcs (optional ) | |
| Discharging valve | Diameter | 3 inch |
| Material | Aluminum Alloy API valve，Jialong brand | |
| Number | 2-9 pcs(optional ) | |
| Bottom safety valve | Aluminum Alloy 4 inch | |
| Discharging pipe | Diameter | 3 inch |
| Type | Rubber hose,2pcs | |
| Cat walk | Standard | |
| Chassis | ||
| Axle | Brand | Fuwa or Tongya brand |
| Type | 13t | |
| Number | 3pcs | |
| Rim | Type | 9.0-22.5 |
| Number | 12 pcs | |
| Tire | Brand | Triangle brand |
| Type | 12R22.5 | |
| Number | 12pcs | |
| Suspension | Mechaniacal suspension / air suspension can be optional | |
| Spring leaf | Leaf width | 90mm |
| Leaf thickness | 13mm | |
| Layer/set | 10 Layer | |
| King pin | Type | Bolts type |
| Diameter | 2 inch | |
| Brake system | Air tank | 45L air tanks |
| Brake chamber | WABCO RE6 relay valve; T30/30+T30 Spring brake chamber | |
| ABS | Optional | |
| Landing gear | Brand | JOST |
| Type | A300C | |
