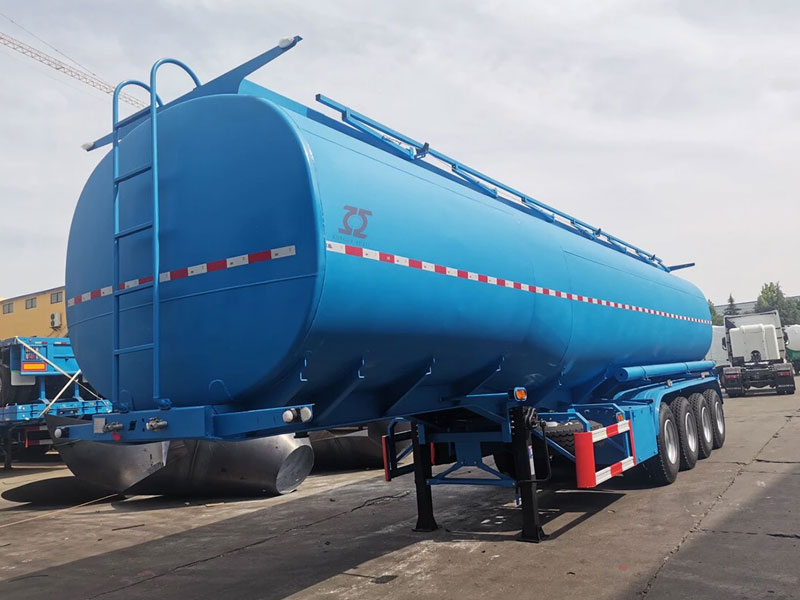

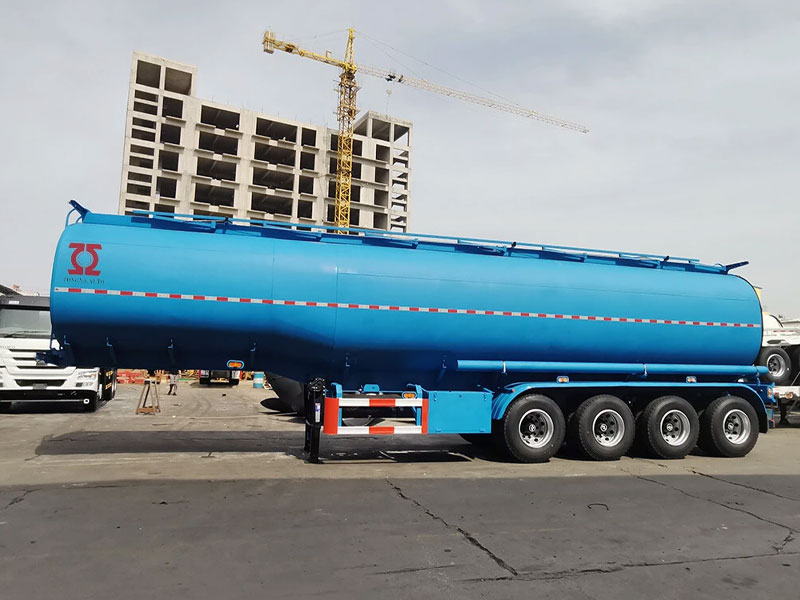

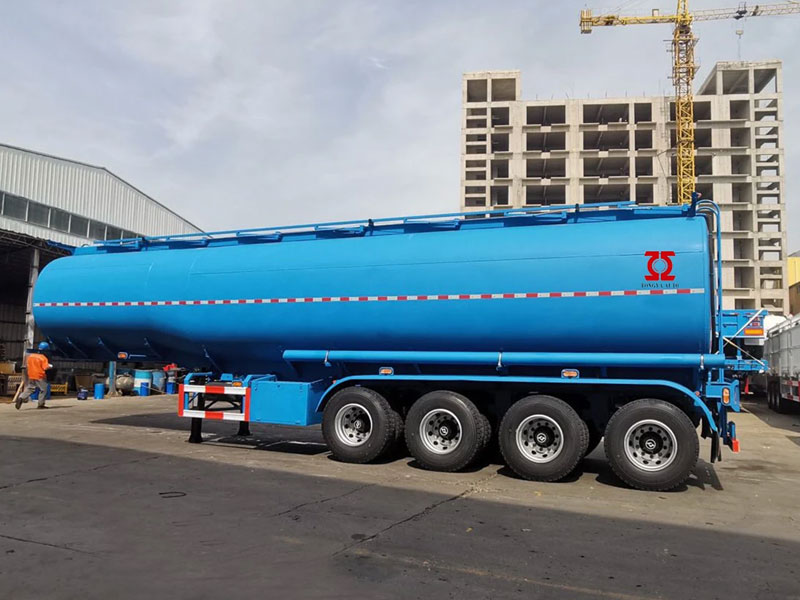

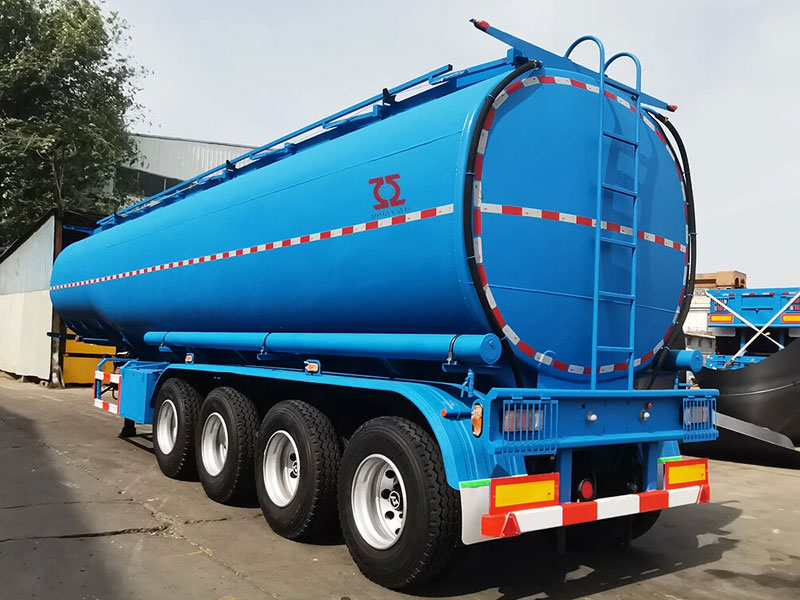

55m³ Oil Tanker Semi Trailer
- We offer ready-to-ship high-specification tanker semi-trailers at factory-direct pricing, featuring top-tier components and fastest deliv……
Product Description
We offer ready-to-ship high-specification tanker semi-trailers at factory-direct pricing, featuring top-tier components and fastest delivery in the industry - guaranteed lowest price with quality assurance.
Engineered with optimized volumetric design, our tankers deliver industry-leading 55 cubic meter capacity while maintaining perfect weight distribution and road stability.
| Specification | |||
| Product | 55m3 oil tanker semi trailer | ||
| Tare Weight | About 12T | ||
| Dimension( The exact size depends on final design) | Length:13200 mm (outside dimension) | ||
| Width: 2500 mm ( outside dimension) | |||
| Height: 3850mm (outside dimension) | |||
Tank Assembly | Front/Rear end plate | Material | Q345 Steel |
| Thickness | 6mm | ||
| Tank Body | Material | Q345 Steel | |
| Thickness | 5mm | ||
| Compartment | 5 compartment | ||
| Manhole Cover | Diameter | diameter 500mm | |
| Material | steel | ||
| Number | 5pcs | ||
| Discharging Valve | Diameter | 3 inch | |
| Material | Euro Standard Valve | ||
| Number | 5pcs | ||
| Bottom Safety Valve | 5 pcs with Pneumatic controller | ||
Discharging Pipe | Diameter | 3 inch | |
| Type | Rubber hose, 2pcs | ||
| Cat Walk | Standard type | ||
Running mechanism | Axle | Brand | BPW |
| Type | 13T | ||
| Number | 4 pcs(front axle can be lifed) | ||
| Tyre | Type | 12R22.5 | |
| Number | 17pcs(Including 1 spare tyre) | ||
| Suspension | Front axle with air suspension . American type mechanical suspension for 3 axle, | ||
Spring leaf | Leaf width | 90mm | |
| Leaf thickness | 13mm | ||
| Layer/ set | 10 Layer | ||
Kingpin | Brand | JOST brand | |
| Type | Bolts type | ||
| Diameter | 3.5 inch | ||
Brake system | Air tank | 45L air tanks | |
| Brake chamber | Six double and 2 single Spring brake | ||
| Emergency | Wabco | ||
| ABS | With | ||
Landing gear | Brand | JOST brand | |
| Accessories | Spare tyre carrier | 2 set | |
| Light | LED light | ||
| Voltage | 24V | ||
| Receptacle | 7 ways (7 wire harness) and quick change type | ||
| Toolbox | One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) | ||
| Painting | color advised by client | ||
