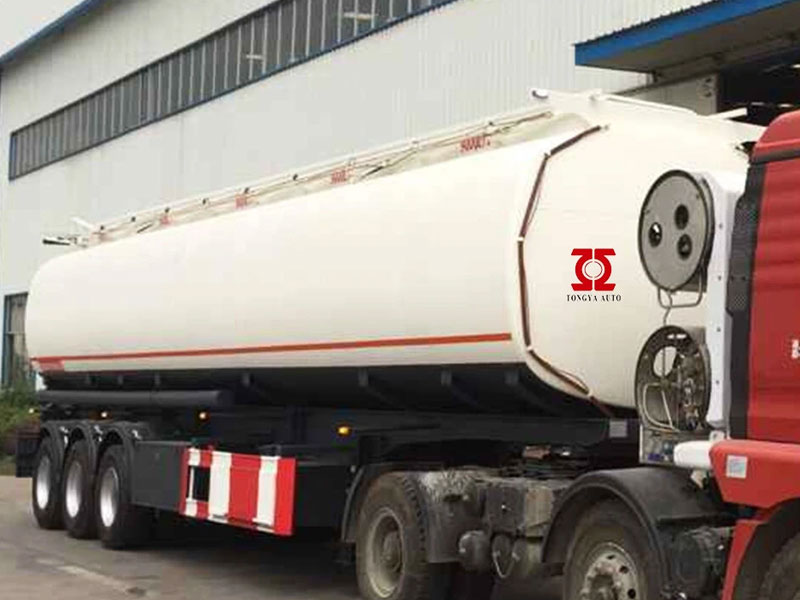

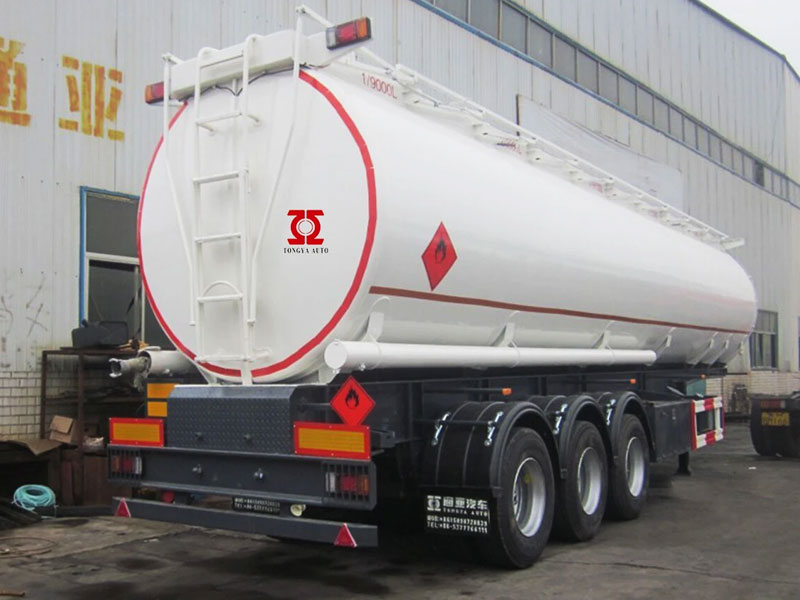

50m³ Oil Tanker Semi Trailer
- Tongya's 50m³ oil tanker semi-trailers maximize transport efficiency with high capacity and reduced costs. Features leak-proof design wit……
Product Description
Tongya's 50m³ oil tanker semi-trailers maximize transport efficiency with high capacity and reduced costs. Features leak-proof design with pre-delivery pressure tests, emergency shut-off valves, and safety-compliant construction. Durable, aerodynamic, and built to last.
Specifications:
| Tank Body | |
| Shape | Optional ( Round or Suare) |
| Dimension | 13500mm*2490mm*3800mm ( Exact size depends on the final design) |
| Tare weight | About 12000KGS |
| Total Volume（m3） | 45m³ |
| Tanker Body Material | 5mm or 6mm/ Q235 carbon steel |
| End Plate | 5mm or 6mm /Q235 carbon steel |
| Manhole Cover | Cabon steel or API manhole cover, ∮500mm |

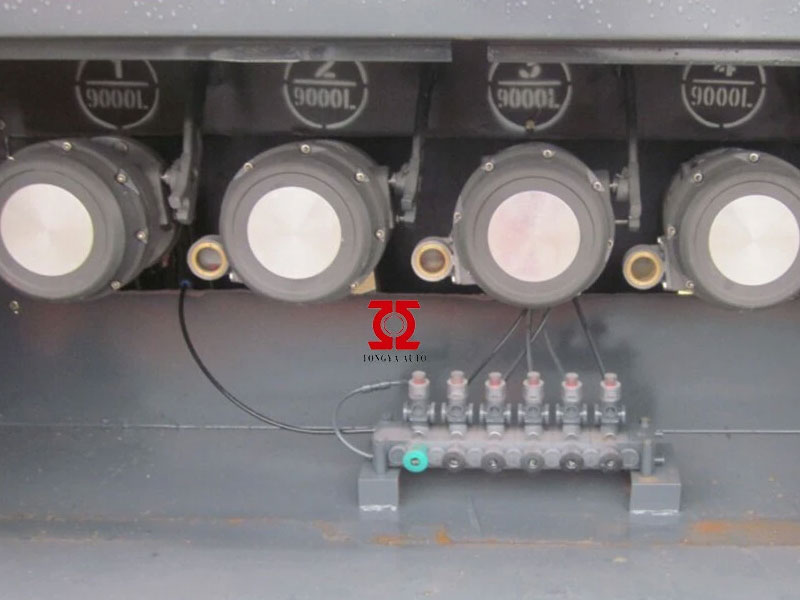

| Bottom Valve | Aluminum API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | 5 |
| Discharging Pipe | 4”rubber hose, 2 pcs, 6m/each |
| Cat Walk | With (Common model or special design) |
| Chassis | |
| Main Beams | Connected by bolts and nutsQ355 carbon steel material |
| Axle | 3 axles,FUWA brand |
| Landing Gear | JOST A300C or TONGYA 28T |
| King Pin | JOST 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension/Germany or America type /air suspension |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
| Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber（TKL brand）; one piece of 45L air tanks. |
| Rim | 9.00-22.5 |
| Tire | 315 80R22.5 Triangle brand |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
| Shipping Terms | By Bulk Cargo |
50m3 OIL TANKER SEMI TRAILER to West Africa large volume,High safety and quality are guaranteed.
Tongya Auto oil tanker semi trailer, with thick tanks and strong sealing, have a longer service life than other brands, and their quality is guaranteed.
