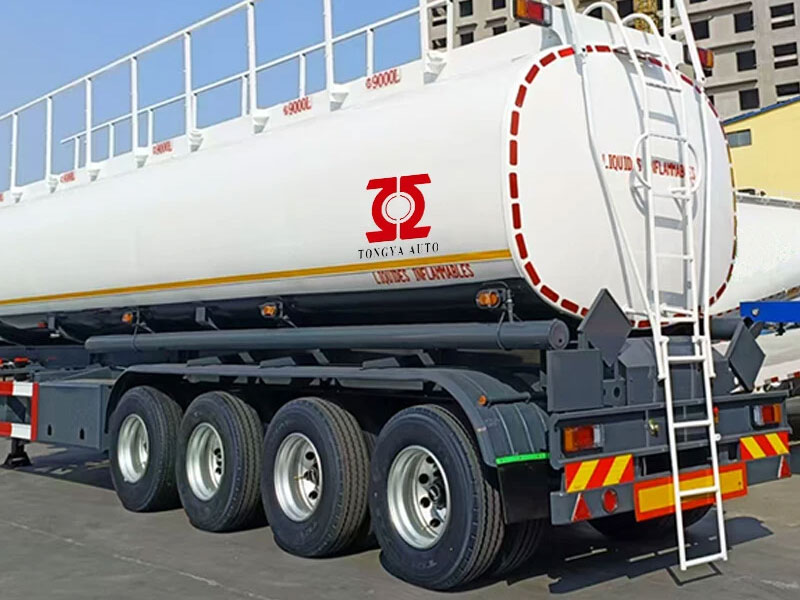

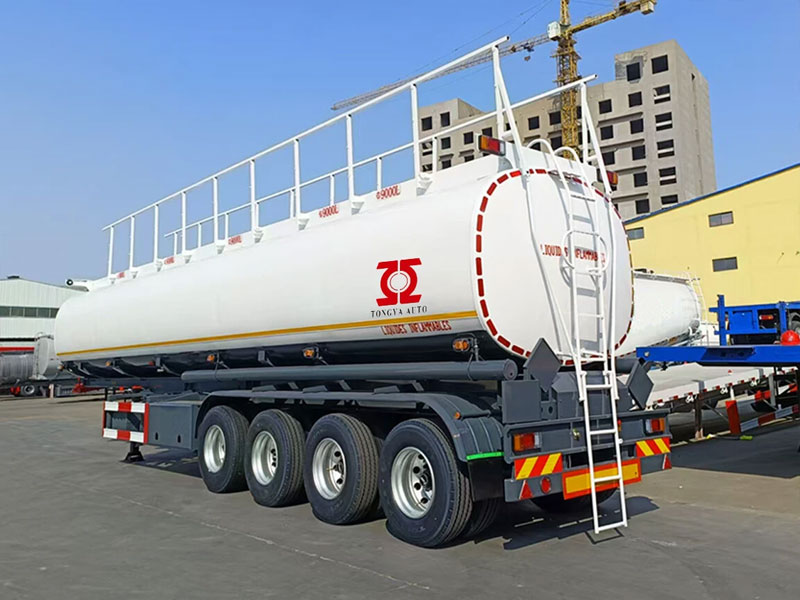

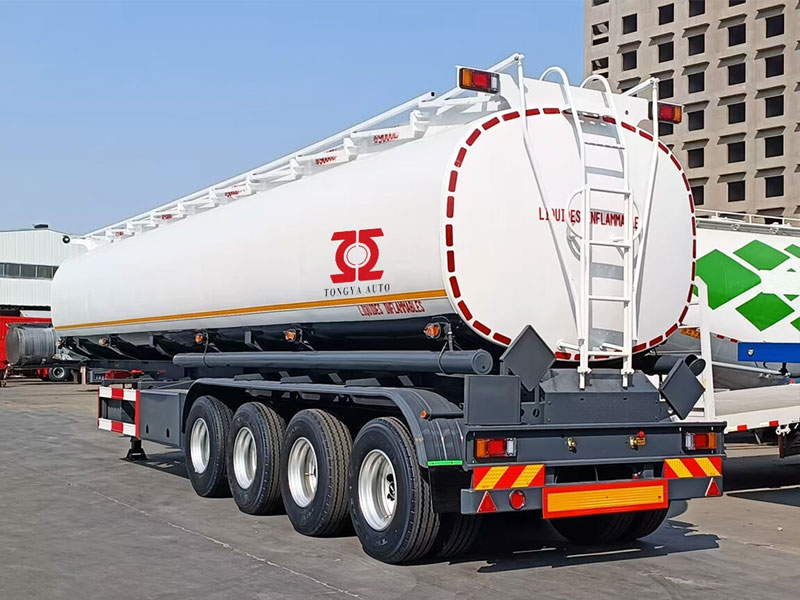

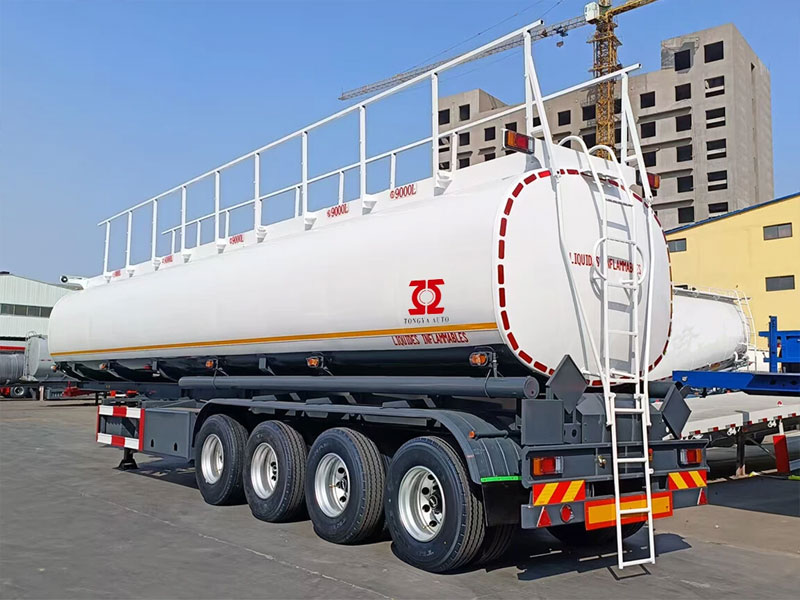

4 Axle Fuel Tanker Semi Trailer
- Featuring an innovative independent joist structure, our 4-axle fuel tanker semi-trailer connects the tank to the frame through reinforce……
Product Description
Featuring an innovative independent joist structure, our 4-axle fuel tanker semi-trailer connects the tank to the frame through reinforced joists. This advanced design optimally distributes tank weight, significantly enhances frame load-bearing capacity (up to XX tons), and ensures stable performance across diverse road conditions - from highways to challenging terrain.
Engineered for heavy-duty operations, this robust 4-axle tanker boasts exceptional structural integrity to safely transport multiple oil products including diesel, gasoline, and lubricants. The unique buffer space between tank and frame minimizes vibration and impact during transit, while the optimized axle configuration delivers superior road adaptability - maintaining stability even on winding routes or uneven surfaces.
4 Axle Fuel Tanker Semi Trailer Specification:
| Product | 4 Axle Fuel Tanker Semi Trailer | ||
| Tare Weight | About 12T | ||
| Dimension( The exact size depends on final design) | Length:13200 mm (outside dimension) | ||
| Width: 2500 mm ( outside dimension) | |||
| Height: 3850mm (outside dimension) | |||
Running mechanism | Axle | Brand | BPW/Fuwa |
| Type | 13T | ||
| Number | 4 pcs(front axle can be lifed) | ||
| Tyre | Type | 12R22.5 | |
| Number | 17pcs(Including 1 spare tyre) | ||
| Suspension | Front axle with air suspension . American type mechanical suspension for 3 axle, | ||
Spring leaf | Leaf width | 90mm | |
| Leaf thickness | 13mm | ||
| Layer/ set | 10 Layer | ||
Kingpin | Brand | JOST brand | |
| Type | Bolts type | ||
| Diameter | 3.5 inch | ||
| Landing gear | Brand | JOST brand | |
| Accessories | Spare tyre carrier | 2 set | |
| Light | LED light | ||
| Voltage | 24V | ||
| Receptacle | 7 ways (7 wire harness) and quick change type | ||
| Toolbox | One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) | ||
| Painting | color advised by client | ||
