3 Axle Flatbed Semi Trailer
- Tongya 3 Axle Flatbed Semi Trailer Engineered for professional heavy haulage, our triple-axle flatbed semi trailers deliver exceptiona……
Product Description

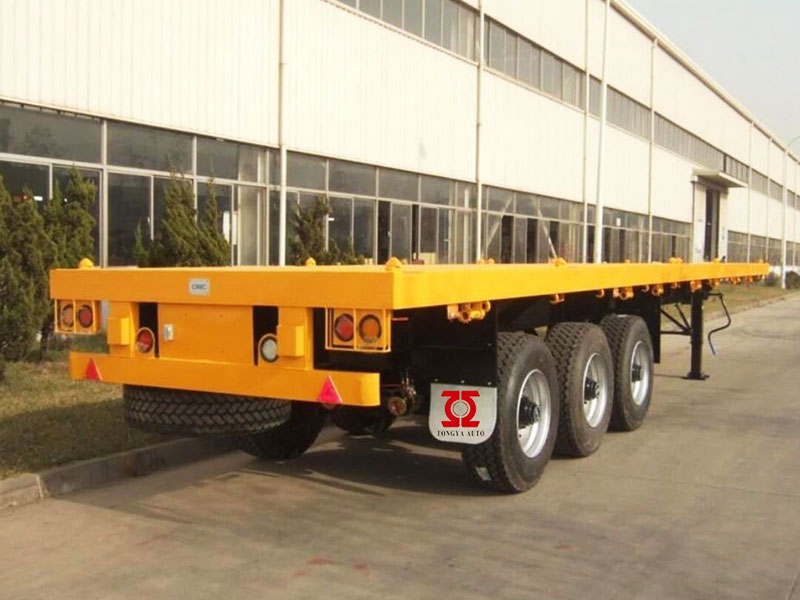

Tongya 3 Axle Flatbed Semi Trailer
Engineered for professional heavy haulage, our triple-axle flatbed semi trailers deliver exceptional stability, durability and payload capacity for transporting construction equipment, steel products and industrial machinery.
Specifications:
| Gross Weight | About 6400kgs |
| Outer side dimension(mm) | 13000 × 2500 × 2150 |
| Front board height | 600mm |
| Loading Capacity (Ton) | ≤ 60T |
| AXLES | 13T per axle, 3axles BPW Brand |
| Tire | 385/65R22.5, 7pieces Triangle brand |
| Rim | 11.75-22.5, 7pieces China Brand |
| Suspension | Tongya air suspension, first axle with lift. |
| King pin | 2.0 inch, JOST brand |
| Support leg | JOST A300C |
| Main beam | Height: 500mm, upper plate is 12mm, middle plate is 8mm, down plate is 14mm ; Material is T700 |
| Platform | 2.3mm diamond plate steel |
| Side beam | 16# channel steel |
| Brake chamber | Wabco relay valve; T30/30+T30 Spring brake chamber; two piece of 45L air tank |
| Twist Locks | 12PCS |
| ABS | With |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m |
| Painting | Powder spray |
We have rich export experience and can customize the service according to your needs, contact us, we will give you the best service and price.
