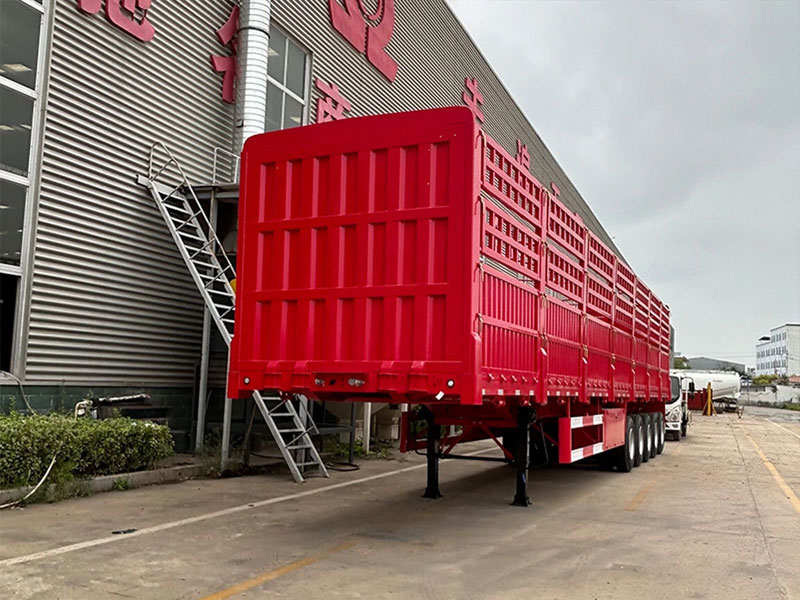

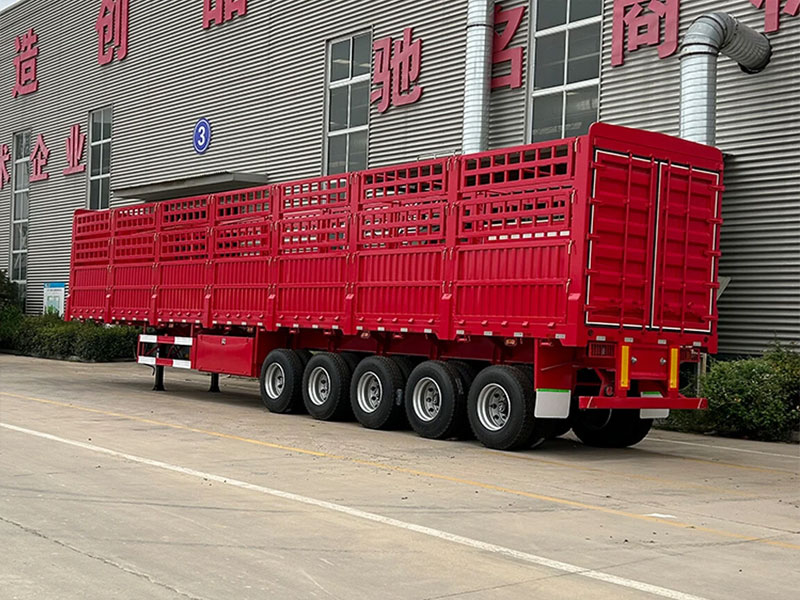

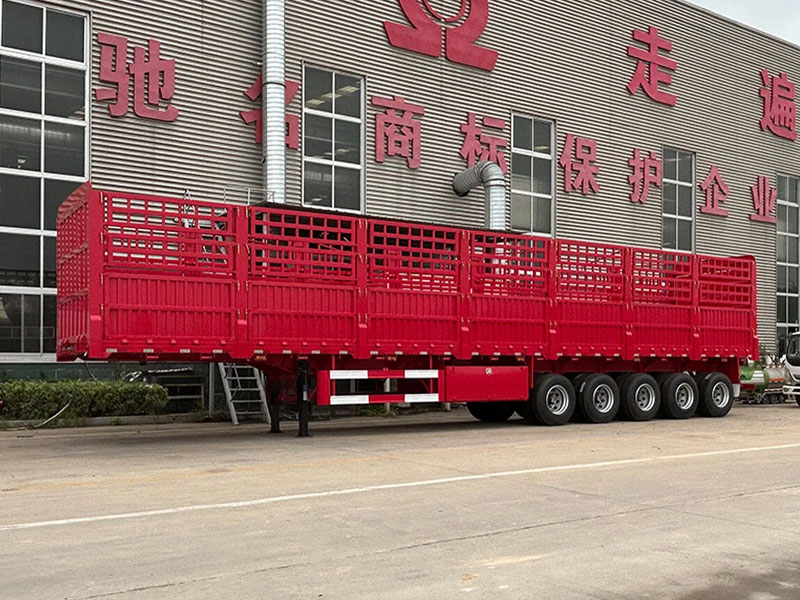

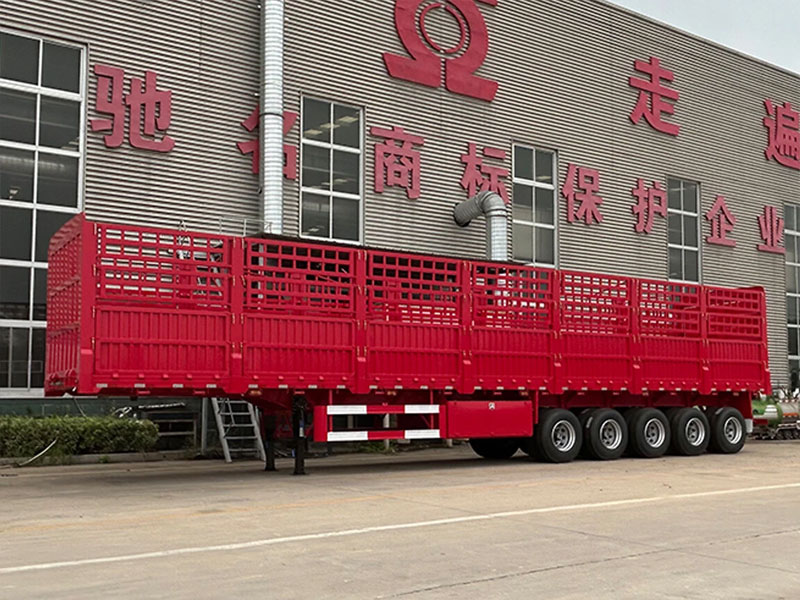

5 Axle Side Wall Semi Trailer with Bulk Cargo
- 1. Primary Applications:Our 5-axle side wall semi trailer is specifically engineered for long-haul bulk cargo transportation, offering ex……
Product Description
1. Primary Applications:
Our 5-axle side wall semi trailer is specifically engineered for long-haul bulk cargo transportation, offering exceptional performance for:
• Cross-country logistics operations
• Large-scale construction material distribution
• Mining and agricultural bulk commodity haulage
• Industrial raw material transportation
2. Outstanding Load Capacity:
Featuring an advanced multi-axle configuration, our trailers provide:
• Industry-leading payload capacity of 60-80+ metric tons
• Optimized weight distribution system for enhanced stability
• Heavy-duty construction capable of handling:
- Construction materials (steel beams, concrete products)
- Mining outputs (ores, aggregates)
- Agricultural commodities (grain, fertilizers)
- Industrial equipment and machinery
Key Advantages:
• Extended service life through reinforced structural design
• Customizable configurations to match specific cargo requirements
• Superior road-holding performance for long-distance operations
• Compliance with international heavy-load transport regulations
The trailer's robust construction utilizes high-tensile steel components and features an optimized suspension system, making it particularly suitable for demanding transportation conditions across various geographic regions.
| Specification | |
| Outside Dimension | 16000*2500*4200mm(the final dimension is according the final drawing picture) |
| Loading capacity | 80tons |
| Axle | 5 Axles |
| Suspension | Mechanical suspension |
| Main beam | Height: 500mm, upper plate is 16mm, middle plate is 10mm,down plate is 18mm ; Q345 steel |
| Side beam | 18# channel steel |
| Side Wall Fence | Side wall height: 2000mmSide fence height: 700mmTotal height: 2700mmThickness: 1.2mm |
| Bottom platform | 3mm patterned platform |
| Tire | 12R22.5 16pcs |
| Rim | 9.0*22.5 16pcs |
| Speing leaf | 90(W)mm*13(Thickness)mm*10 Layer |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Landing gear | JOST A300C Or TONGYA 28T |
| Pneumatic Braking System | WABCO RE 6 relay valve, Spring brake chamber; one piece of 45L air tanks |
| Accessories | One standard tool box; one spare wheel carrier; 24 weld on winchRope hook |
| Painting | Spray powder |
| Voltage | 24V |
| Receptacle | 7 ways |
