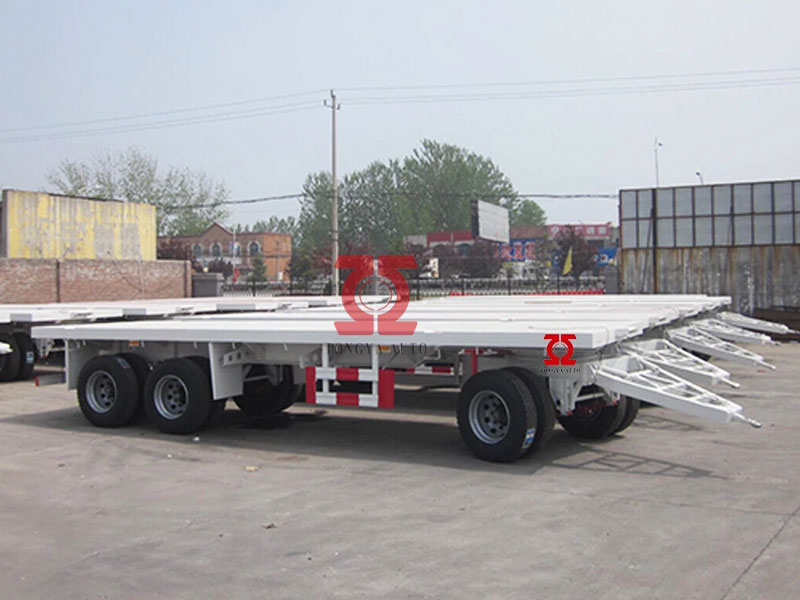

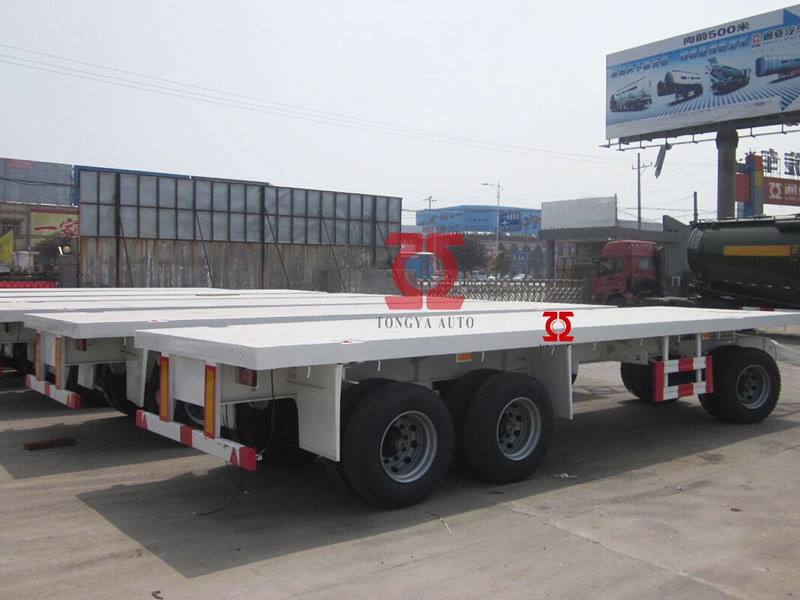

Tongya Flat Bed Full Trailer
- 1. Multi-Modal Transport SpecialistTongya's full trailers (tractor trailers) are engineered for seamless integration across maritime, por……
Product Description
1. Multi-Modal Transport Specialist
Tongya's full trailers (tractor trailers) are engineered for seamless integration across maritime, port, highway, and intermodal logistics networks. Designed for long-term repetitive use in containerized freight systems, they deliver exceptional structural strength to withstand rigorous transport cycles while maintaining operational reliability.
2. Optimized Container Logistics Solution
Specifically developed for intermodal operations, our trailers excel in all container transport scenarios. Their heavy-duty construction ensures durability across years of service, while the standardized design guarantees compatibility with global handling equipment and transport infrastructure.
3. Efficient Fleet Productivity
Revolutionizing transport economics, our full trailer system enables single tractors to haul 2-3 trailers simultaneously. This innovative approach eliminates terminal wait times, prevents unnecessary cargo transfers, and significantly reduces long-haul logistics costs - delivering unmatched efficiency in port-to-hub operations.
Spscifications:
| Type | Flat Bed Full Trailer | |
| Usage | Using for loading container, bagged cement or other cargo | |
| Shipping Terms | Bulk cargo carrier or RO-RO | |
| Deliver Time | 15 workdays | |
| Weight: | ||
| Tare weight | About 6.8T | |
| Payload | Loading 40T | |
| Specification: | ||
| Outside dimension(L*W*H) | 10000mm*2500mm*1500mm | |
| Axle No./weight | 3*13T,BPW brand | |
| Suspension | Leaf spring suspension,10pcs*90mm*13mmHeavy duty tri-axle suspension with equalizers, American design (high-strength type) | |
| Turntable | With | |
| Draw bar | Length is 1.5m | |
| Tractor hook | DN50 | |
| Wheel: | ||
| Tire | 12R22.5,13pcs,TRIANGLE brand(including one spare tire) | |
| Rim | 9.0*22.5,13pcs(including one spare tire) | |
| Spare tire carrier | 2 spare tire carriers | |
| Frame: | ||
| Main beam | 500mm height“Ⅰ”beam;top flange thickness 14mm,middle flange thickness 8mm,down flange thickness 16mm | |
| Side beam | 16#channel steel | |
| Platform | 3mm diamond platform | |
| Twist locks: | 4pcs | |
| Brake: | ||
| Emergency valve | WABCO brand | |
| Brake chamber | 6 double chambers | |
| ABS system | Without(Can be chosen freely) | |
| Electrical: | ||
| Voltage | 24V | |
| Receptacle | 7 ways (7 wire harness) | |
| Light color: | With LED lights | |
| Front marker light | Front corner marker lam is red,reflector is white | |
| Side marker light | Orange | |
| Rear marker light | Red | |
| Turn single light | Orange | |
| Miscellaneous: | ||
| Painting | Sand blasting to clean rust before painting;spray powder and paint | |
| Marking | Standard | |
| Side guard | Standard | |
| Tools box | One piece | |
| Color: | ||
| According to the requirements of the customer | ||
