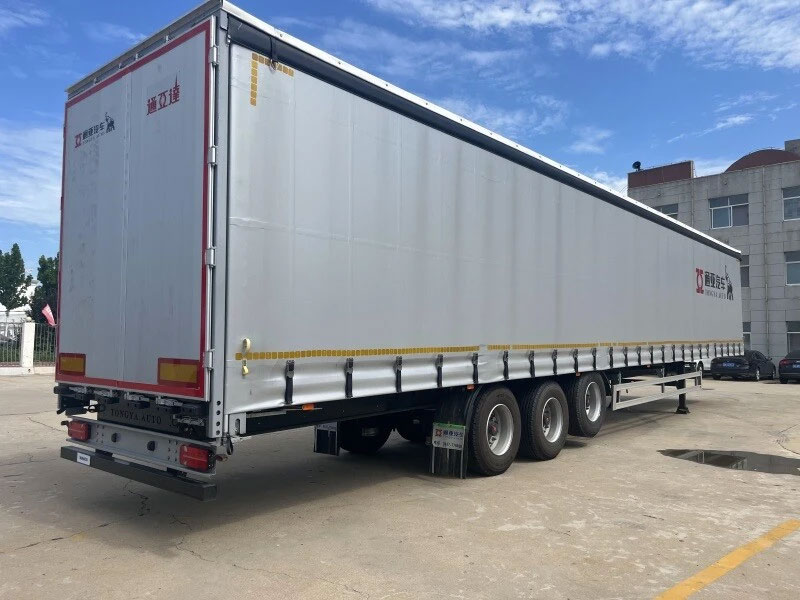

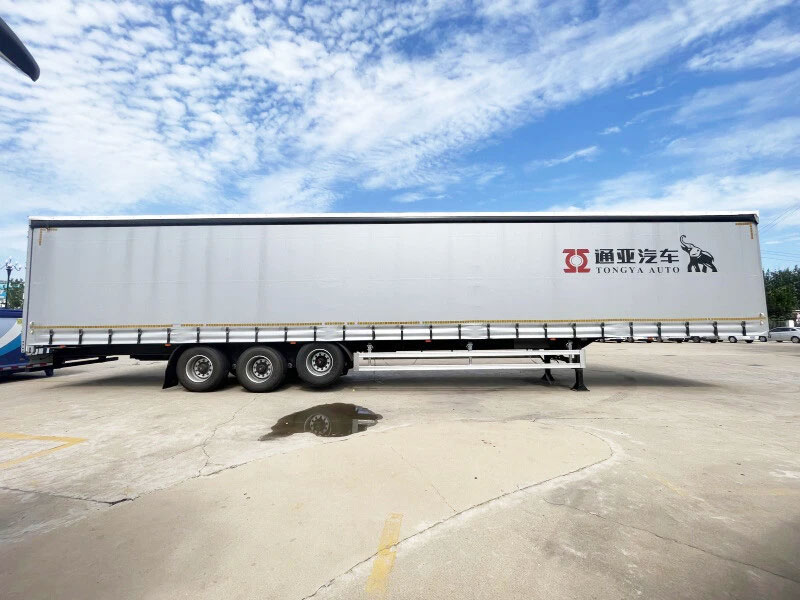

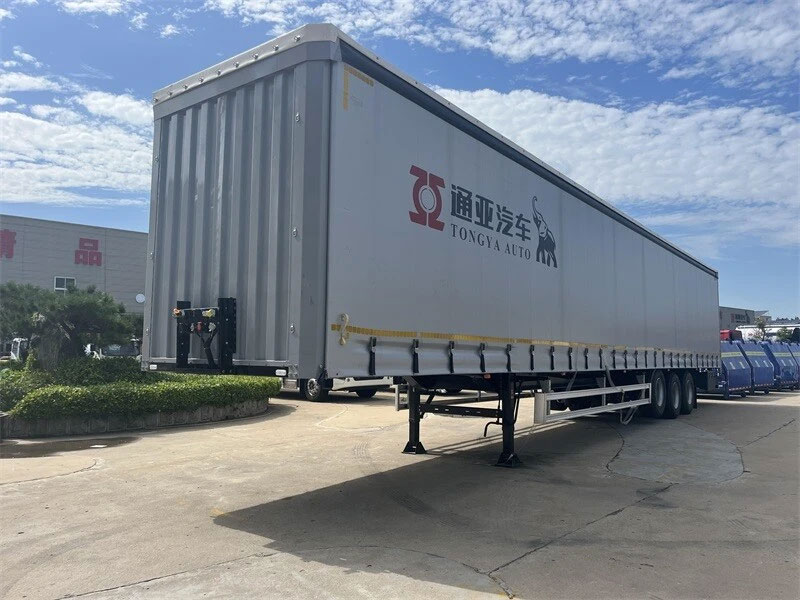

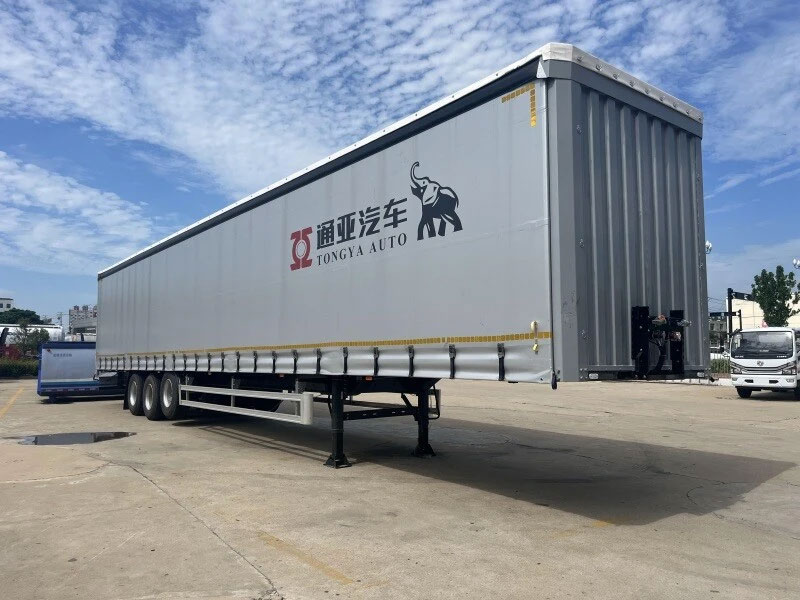

Tongya Curtain Semi Trailer
- Tongya's Curtain Semi Trailer is designed for fast, secure, and flexible cargo transportation. Featuring a high-strength roll-up curtain ……
Product Description
Tongya's Curtain Semi Trailer is designed for fast, secure, and flexible cargo transportation. Featuring a high-strength roll-up curtain system, it provides full-side access for quick loading and unloading, reducing downtime and improving logistics efficiency.
| Product | Curtain semi trailer | ||
| Tare Weight | About 7000KG | ||
| Dimension outside dimension | Length: 16900mm | Dimension inside dimension | Length: 16660mm |
| Width: 2550 mm | Width: 2480mm | ||
| Height: 4000mm | Height:2690mm | ||
| Upper structure Assembly | Curtain | Top density | 900g±50g/㎡ |
| Side density | ≥680g/㎡ | ||
| The tension locking mechanism at the bottom is made of stainless steel | |||
| floor board | Material | Plywood | |
| Thickness | 30mm | ||
| Frame | Column | There are 4 columns on each side (8 columns in the whole trailer) | |
| Baffle | There are 4 removable aluminum Baffles between the columns (20 on each side) | ||
| Front bezel | Aluminum alloy structural section | ||
| Back door | Two aluminum doors with 4 hidden mechanisms (2 mechanisms per door), as well as locking devices installed outside under the floor to secure the doors in the open position. | ||
| Side loading height | 2600mm | ||
| Running mechanism | Axle | Brand | SAF |
| Type | 3 axles (first axle lift) | ||
| Number | 3 | ||
| tonnage | 10T | ||
| Rim | Type | 11.75*22.5 | |
| Tyre | Brand | Triangle brand | |
| Type | 385/65R22.5 | ||
| Number | 7pcs (Including 1 spare tire) | ||
| Suspension | Air suspension, the whole trailer can be lifted | ||
| Accessories | King pin | Brand | JOST brand |
| Diameter | 2.0 inch | ||
| Landing gear | SAF brand | ||
| Spare tire carrier | 1 set | ||
| Brake system | Brake chamber | 4 double brake chamber and 2 single chamber | |
| EBS | WABCO 4S/2M | ||
| Electrical systems and lighting | lamps | LED | |
| Voltage | 24V | ||
| Receptacle | 7 ways (7 wire harness) and quick change type and 15 ways (15 wire harness) | ||
| Uses and Advantages | As a kind of van, the side curtain trailer has all the characteristics of an ordinary van: the envelope is completely closed, which can prevent rain and dust, and can achieve all-weather protection for goods; The volume of the envelope is completely determined, which can effectively prevent overloading and overrun. Because the side curtain trailer is closed by the curtain on both sides, it has some outstanding advantages again: because the side curtain weight is significantly lighter than the hard side panel, thus the whole semi trailer is lighter than the van; The side curtain is flat and suitable for printing various patterns, so the appearance is significantly more beautiful than that of the van; The curtain can be pulled open quickly, and the forklift can be loaded and unloaded on the side of trailer, so the loading and unloading efficiency is very high. | ||
