Powder Tanker Semi Trailer
- Full Customization Support - We offer complete customization for tanker capacity (35-65m³) and structural style (single/double cone……
Product Description
- Full Customization Support - We offer complete customization for tanker capacity (35-65m³) and structural style (single/double cone, square/round) to perfectly match your transport needs.
- China's Top Manufacturer - As industry leaders since 1982, we've maintained No.1 sales position in China's powder tanker market since 2012 with proven quality and reliability.
- Flexible Power Options - Choose between integrated diesel engine (180-300HP), truck PTO-driven system, or heavy-duty compressor (25m³/min airflow) configurations.
- Premium Performance - Features ultra-fast discharging (<0.3% retention), rapid 18-day production cycle, and 99.5% on-time delivery rate for maximum operational efficiency.
| Specification | ||
| Weight: | Tare Weight | 12T |
| Loading capacity | 60 T | |
| Total weight | 72 T | |
| Dimensions: | Dimension | 12000×2500*3800mm (The final dimensions depend on the final design drawings) |
| Tanker capacity | 50m3 (50000L) | |
| Tanker body: | Design/welding technology | Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. |
| Tanker body | The tanker body made of 5mm, tanker ends made of 6mm thickness steel, Q235 steel | |
| Bottom chassis | High strength Q345B steel | |
| Tanker shape | “V” shape | |
| Silo | 4 silos | |
| Manhole: | 4 pieces, (Diameter is 500mm) | |

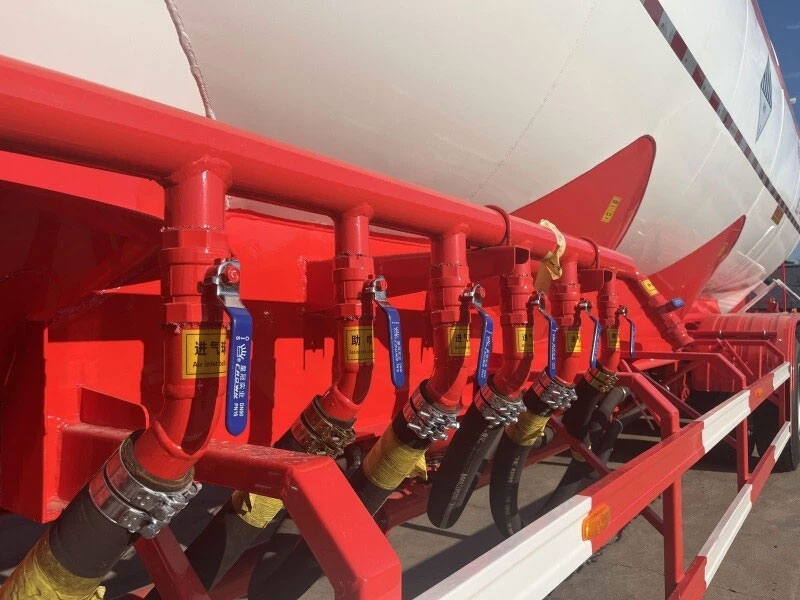

| Discharge mouth | 4 inch Discharge mouth | |
| Safety pressure valve | Standard | |
| Discharge hose | 8m with Hose carries, the length is according to customer requirement | |

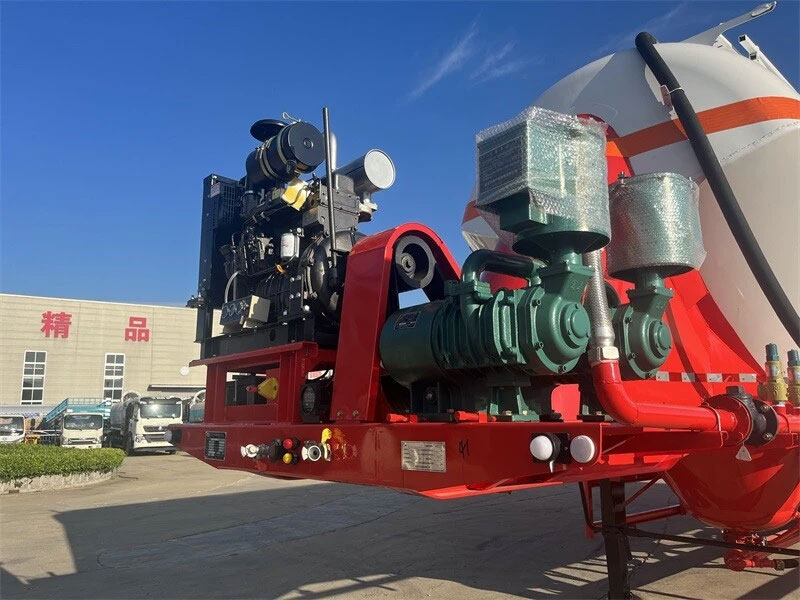

| Air compressor | 12m3 double cylinder Bohai brand | |
| Engine | 4102 Weichai engine | |
| Rear ladder and handrail | Standard | |
| Retention volume | <0.3% | |

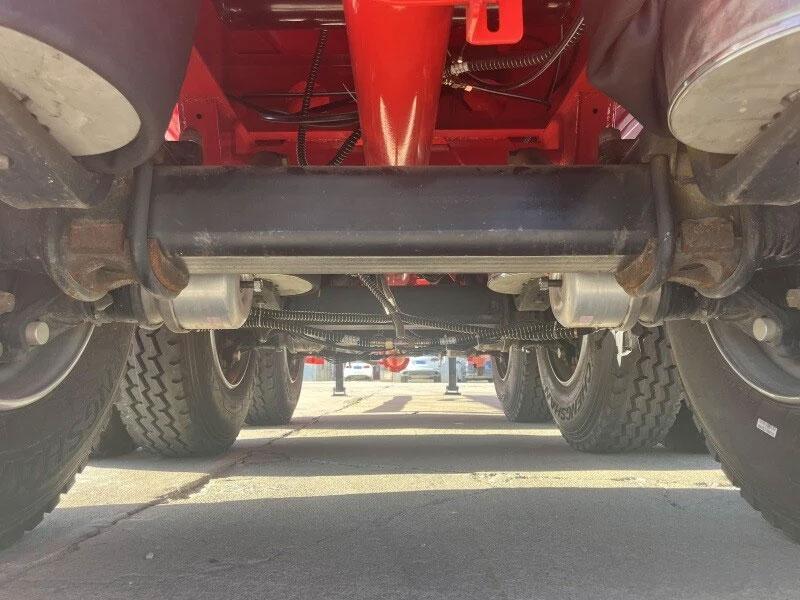

| OEM parts: | Axle | 3* 13 tons capacity, FUWA brand (Chinese best brand) |
| King Pin | 2.00 /3.5 inch, bolting king pin, JOST brand | |
| Suspension | Heavy duty suspension with equalizers, American design (high-strength type) | |
| Steel Spring | Four sets of 10pcs leaf spring, 13mm thickness, 90mm width | |
| Landing legs | JOST brand, manual operation landing legs with sand shoe | |
| Tire specs | 12R22.5 Triangle brand | |
| Rim | 9.0-22.5 | |
| Number of wheel | 9pieces(including one spare wheel) | |
| Brake system | WABCO relay valve; Four double brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector. | |
| ABS system | Without（Can be choose freely,450 USD/set） | |
| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.) | |
| Miscellaneous: | Painting | color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| spare wheel carrier | Two set of heavy duty spare wheel carriers, including a riser. | |
| Tools box | One piece (1. 0*0. 5*0. 5m)(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) | |
| Note: All the details not mentioned will design as the final confirmation with the customer | ||
We Use 100% famous brand spare parts for our products, like JOST, WABCO, BPW, FUWA, Triangle for our trailer !
12 months warranty period is provided for our trailer , We accept 100% inspection, welcome to our factory at any time.
