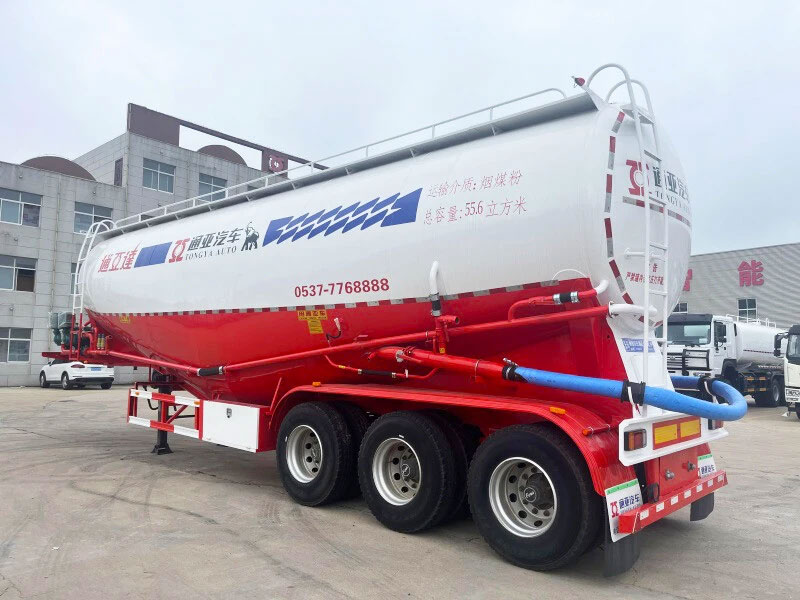

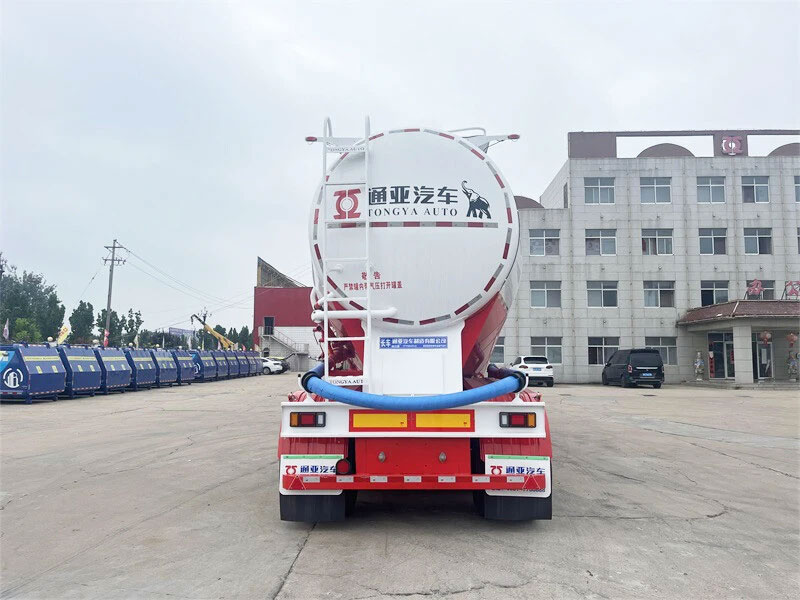

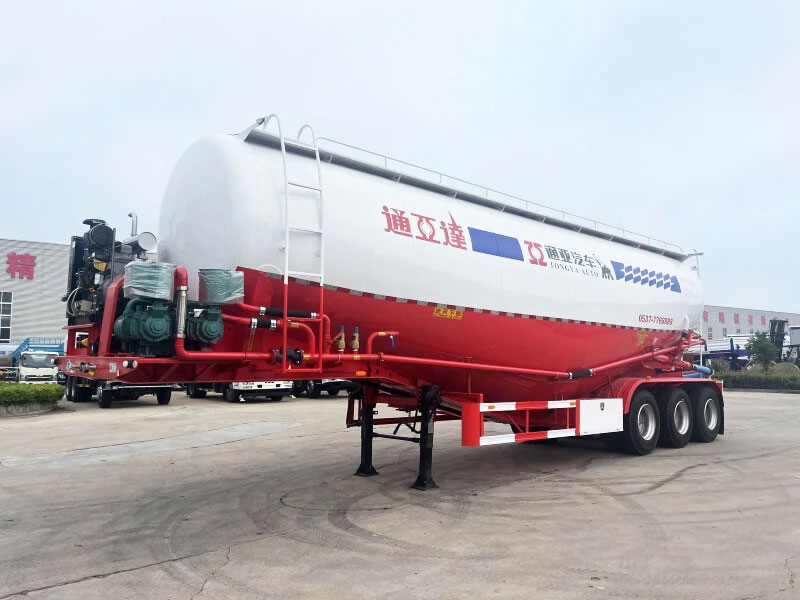

60T Bulk Cement Tanker Semi Trailer
- The 60T Bulk Cement Tanker Semi Trailer is a high-capacity, heavy-duty transport solution designed for the efficient and safe delivery of……
Product Description
The 60T Bulk Cement Tanker Semi Trailer is a high-capacity, heavy-duty transport solution designed for the efficient and safe delivery of bulk cement and powdered materials. Built to withstand rigorous industrial use, this tanker ensures optimal performance, durability, and ease of operation in demanding environments.
| Weight: | Tare Weight | 13T |
| Loading capacity | 60 T | |
| Total weight | 63 T | |
| Dimensions: | Dimension | 13000×2500*3800mm (The final dimensions depend on the final design drawings) |
| Tanker capacity | 56m3 (56000L) | |
| Tanker body: | Design/welding technology | Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. |
| Tanker body | The tanker body made of 5mm, tanker ends made of 6mm thickness steel, Q235 steel | |
| Bottom chassis | High strength Q345B steel | |
| Tanker shape | “V” shape | |
| Silo | 1 silo | |
| Manhole: | 3 pieces, (Diameter is 500mm) | |
| Discharge mouth | 4 inch Discharge mouth | |
| Safety pressure valve | Standard | |
| Discharge hose | 8m with Hose carries, the length is according to customer requirement | |
| Air compressor | 12m3 double-cylinder air compressor, Bohai brand | |
| Engine | Diesel Engine,Weichai 4102 engine | |
| Rear ladder and handrail | Standard | |
| Retention volume | <0.3% | |
| OEM parts: | Axle | 3* 13 tons capacity, FUWA brand (Chinese best brand) |

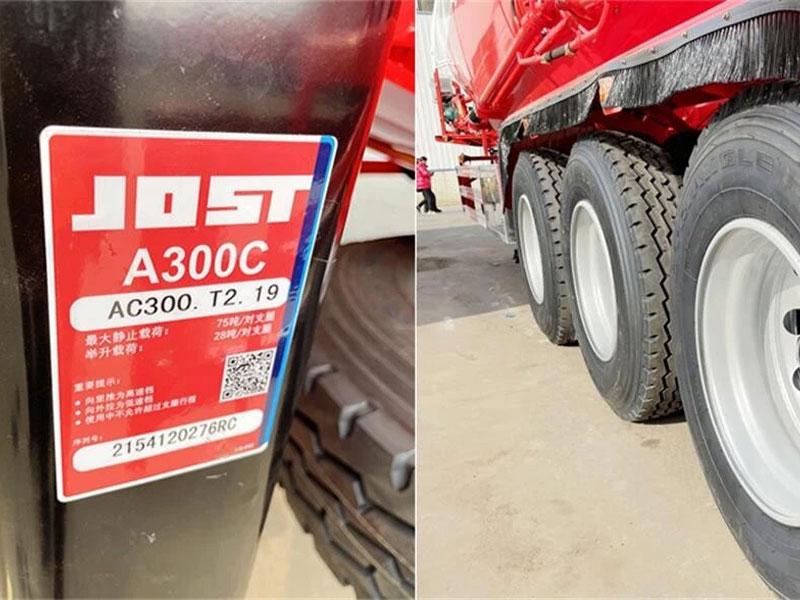

| King Pin | 2.00 /3.5 inch, bolting king pin, JOST brand | |
| Suspension | Heavy duty suspension with equalizers, American design (high-strength type) | |
| Steel Spring | Six sets of 10pcs leaf spring, 16mm thickness, 90mm width | |

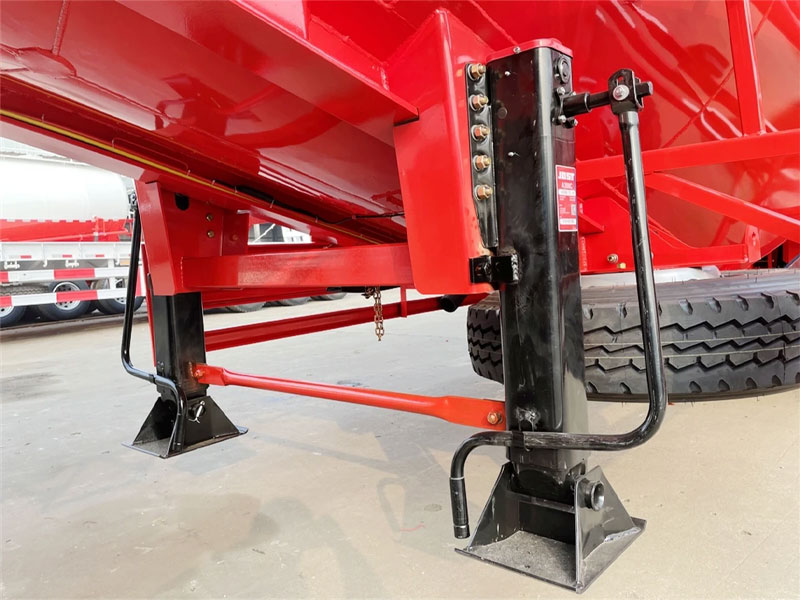

| Landing legs | JOST brand, manual operation landing legs with sand shoe | |
| Tire specs | 12R22.5, or 315/80R22.5 Triangle brand | |
| Rim | 9.0-22.5 | |
| Number of wheel | 13 pieces(including one spare wheel) | |
| Brake system | WABCO relay valve; Four double and two single brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector. | |
| ABS system | Without（Can be choose freely,450 USD/set） | |
| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.) | |
| Miscellaneous: | Painting | color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| spare wheel carrier | Two set of heavy duty spare wheel carriers, including a riser. | |
| Tools box | One piece (1. 0*0. 5*0. 5m)(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) | |
| Note: All the details not mentioned will design as the final confirmation with the customer | ||
Cement trailer is the best-seller product in our company, we win top 1 sales for our cement trailer in China market since 2012
As the manufacturer, customization is acceptable for style, tanker capacity capacity. we can design the cement trailer with engine and compressor, and if you want make the more lighter for the truck tractor plus tanker trailer, PTO via truck tractor is also available.
Our engineers will design the tanker body and under chassis for our cement trailer depend on the load capacity that provided by the end user customer, we choose Q345B high tensile steel in an thicken thickness, with automatic Submerged-Arc processes.
We Use 100% famous brand spare parts for our products, like JOST, WABCO, BPW, FUWA, Triangle for our cement trailer!
12 months warranty period is provided for our cement trailer , We accept 100% inspection, welcome to our factory at any time.
As the China leading cement trailer manufacturer since 1982, with more than 42 years history of manufacturing, more than 18years experience to export to more than 60 countries all over the world, we have improve every details of our cement trailer
