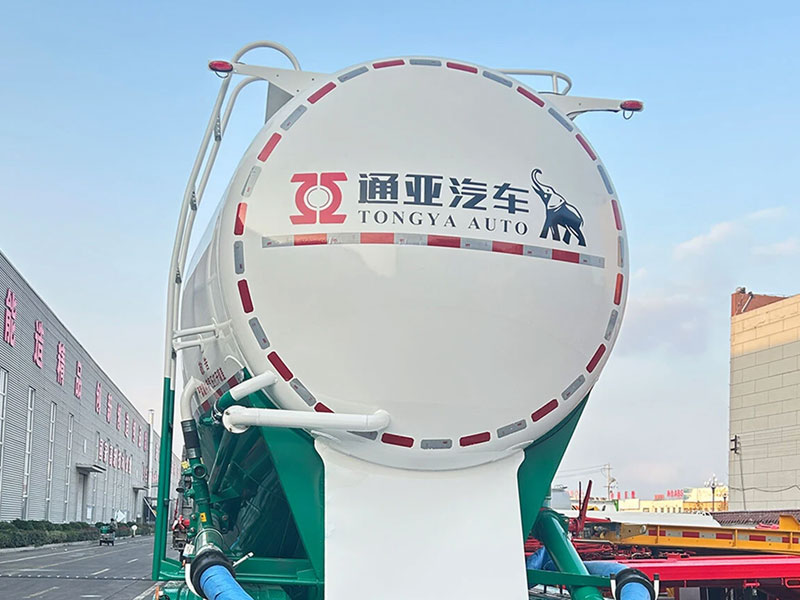

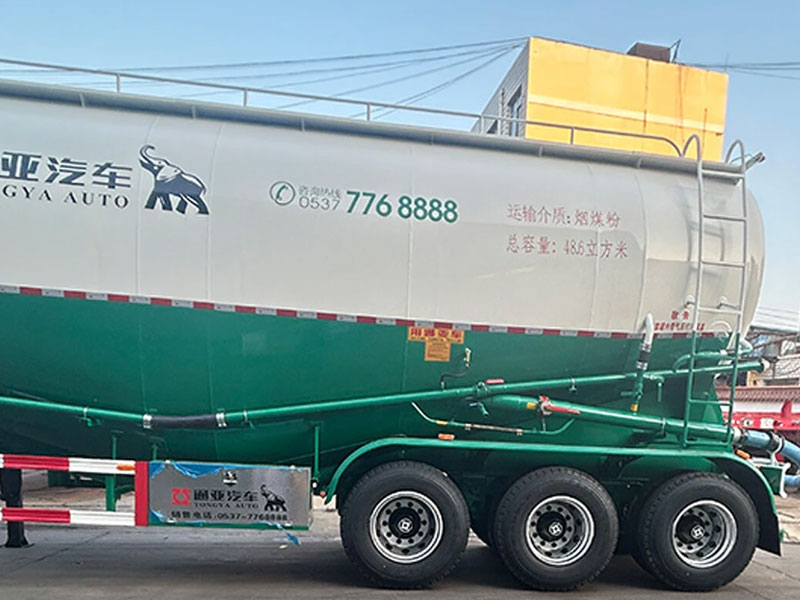

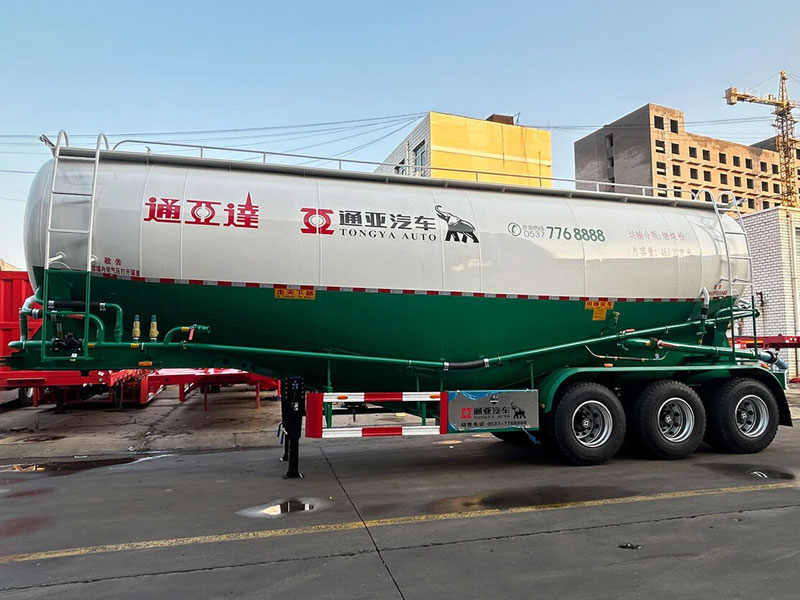

3 Axle Bulk Cement Tanker Semi Trailer
- Our 3-axle bulk cement tanker semi-trailer delivers exceptional transport efficiency through its high-capacity design, significantly redu……
Product Description
Our 3-axle bulk cement tanker semi-trailer delivers exceptional transport efficiency through its high-capacity design, significantly reducing operational costs while maximizing payload potential. The advanced sealing system maintains complete environmental isolation, ensuring absolute protection of your cement or powdered materials throughout transit. This combination of large-volume performance and contamination-proof security makes it an ideal solution for cost-conscious bulk material transporters who won't compromise on product integrity.
Specifications:
Weight: | Tare Weight | 10T |
| Loading capacity | 50T | |
| Total weight | 60T | |
| Dimensions: | Dimension | 12500×2500*3700mm (The final dimensions depend on the final design drawings) |
| Tanker capacity | 60m3 (60000L) | |
| Tanker body: | Design/welding technology | Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. |
| Tanker body | The tanker body made of 4mm, tanker ends made of 5mm thickness steel, Q235 steel | |
| Bottom chassis | High strength Q345B steel | |
| Tanker shape | “V” shape | |
| Silo | 1 silo | |
| Manhole: | 2 pieces, (Diameter is 500mm) | |
| Discharge mouth | 4 inch Discharge mouth | |
| Safety pressure valve | Standard | |
| Discharge hose | 8m with Hose carries, the length is according to customer requirement | |
| Air compressor | Optical | |
| Engine | Optical | |
| Rear ladder and handrail | Standard | |
| Retention volume | <0.3% | |
| OEM parts: | Axle | 3* 13 tons capacity, FUWA brand (Chinese best brand) |
| King Pin | 2.00 /3.5 inch, bolting king pin, JOST brand | |

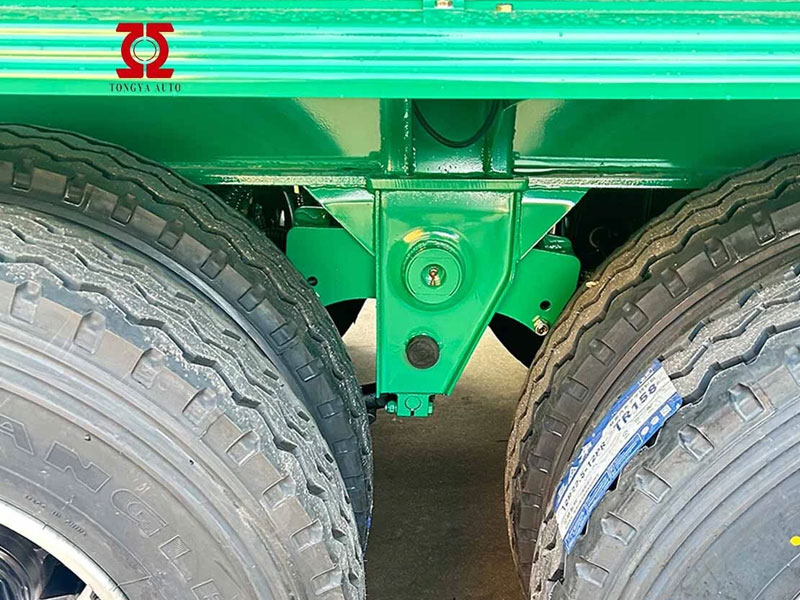

| Suspension | Heavy duty suspension with equalizers, American design (high-strength type) | |
| Steel Spring | Four sets of 10pcs leaf spring, 13mm thickness, 90mm width | |
| Landing legs | TONGYA 28T | |

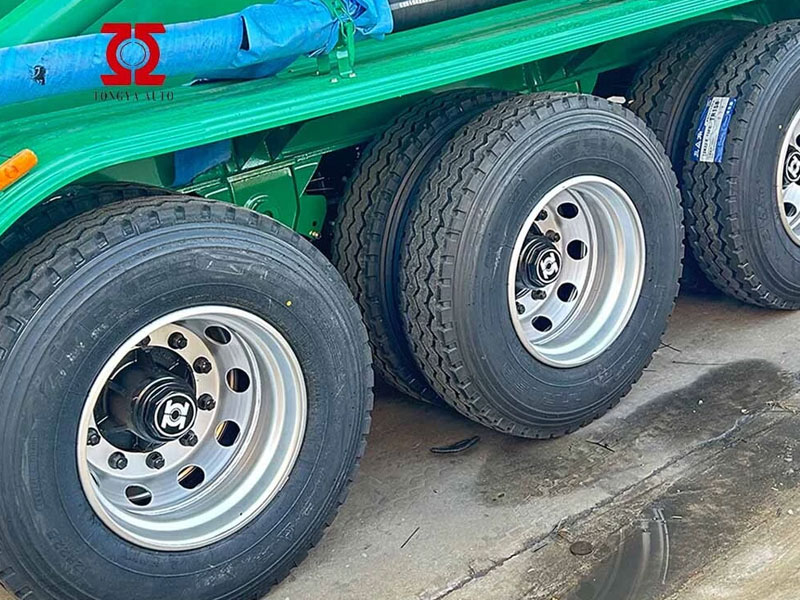

| Tire specs | 12R22.5 Triangle brand | |
| Rim | 9.0-22.5 | |
| Number of wheel | 9pieces(including one spare wheel) | |
| Brake system | WABCO relay valve; Four double brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector. | |
| ABS system | Without（Can be choose freely,450 USD/set） | |
| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.) | |
| Miscellaneous: | Painting | color advised by client |
| Marking | Standard | |

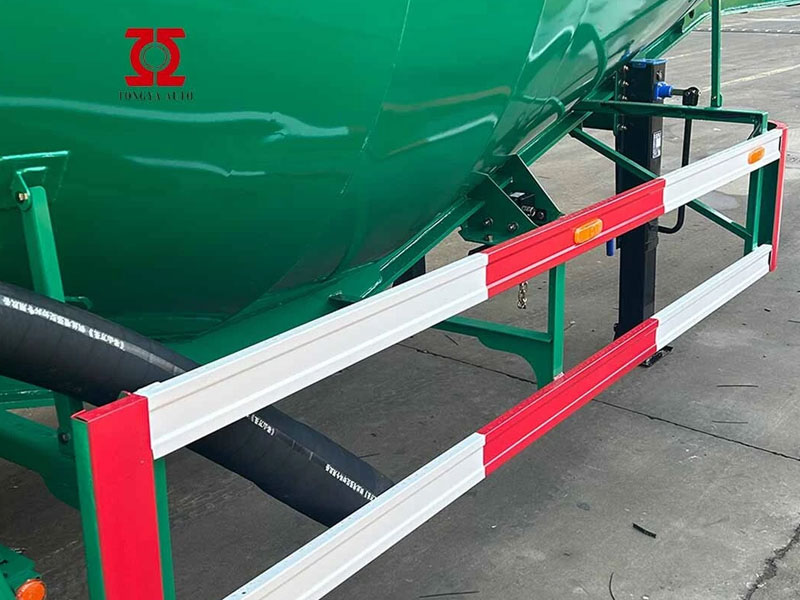

| Side Guard | Standard | |
| spare wheel carrier | Two set of heavy duty spare wheel carriers, including a riser. | |
| Tools box | One piece (1. 0*0. 5*0. 5m)(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) | |
| Note: All the details not mentioned will design as the final confirmation with the customer | ||
